On-Vehicle Inspection [11/2016 - ]: Procedure

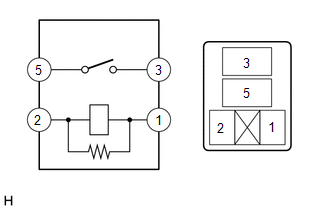

- INSPECT FUEL OPN RELAY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Auxiliary battery voltage applied to terminals 1 and 2 Below 1 Ω 3 - 5 Auxiliary battery voltage not applied between terminals 10 kΩ or higher If the result is not as specified, replace the FUEL OPN relay.
- Measure the resistance according to the value(s) in the table below.
