Components [02/2014 - 11/2016]: Illustration

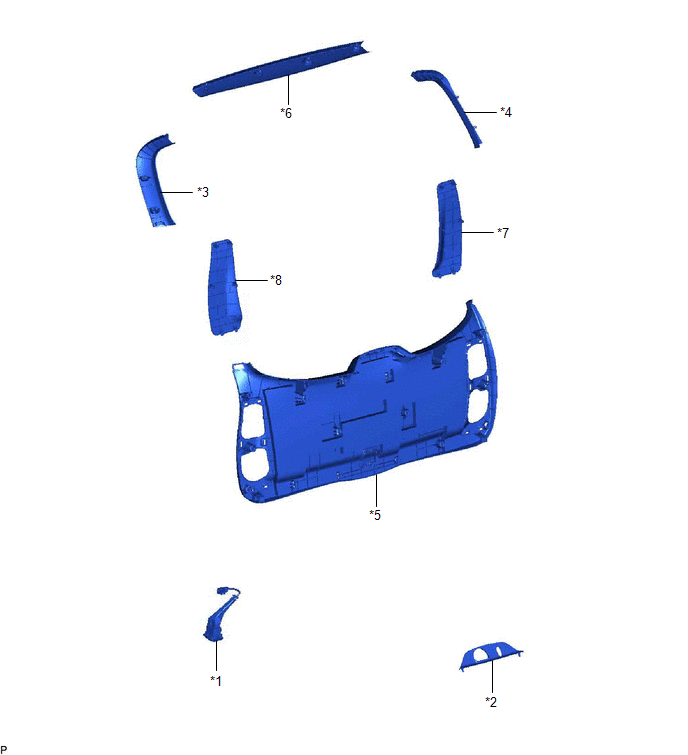

Fig 1: Power Back Door Closer Switch Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BACK DOOR CONTROL SWITCH	*2	BACK DOOR LOCK COVER
*3	BACK DOOR TRIM COVER LH	*4	BACK DOOR TRIM COVER RH
*5	BACK DOOR TRIM PANEL ASSEMBLY	*6	BACK WINDOW UPPER TRIM PANEL
*7	NO. 1 BACK DOOR SERVICE HOLE COVER	*8	NO. 2 BACK DOOR SERVICE HOLE COVER
