Removal [02/2014 - ]: Procedure

  1. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  2. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  3. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  4. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  5. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5 , or refer to PROCEDURE - Step 5

  6. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  7. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR DOOR SCUFF PANEL LH

    Refer to PROCEDURE - Step 12 , or refer to PROCEDURE - Step 12 , or refer to PROCEDURE - Step 12

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13

  10. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11 , or refer to PROCEDURE - Step 11

  11. REMOVE FRONT DECK SIDE TRIM COVER LH

    Refer to PROCEDURE - Step 28 , or refer to PROCEDURE - Step 28 , or refer to PROCEDURE - Step 28

  12. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13

  13. REMOVE NO. 2 DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 30 , or refer to PROCEDURE - Step 30 , or refer to PROCEDURE - Step 30

  14. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 16 , or refer to PROCEDURE - Step 16

  15. REMOVE DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 33 , or refer to PROCEDURE - Step 33 , or refer to PROCEDURE - Step 33

  16. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 34 , or refer to PROCEDURE - Step 34 , or refer to PROCEDURE - Step 34

  17. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 35 , or refer to PROCEDURE - Step 35 , or refer to PROCEDURE - Step 35

  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to PROCEDURE - Step 36 , or refer to PROCEDURE - Step 36 , or refer to PROCEDURE - Step 36

  19. REMOVE FUEL FILLER OPENING LID LOCK RETAINER

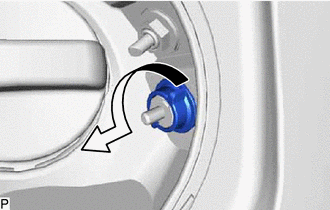

    1. Remove the fuel filler opening lid lock retainer as shown in the illustration.
      GTY435730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

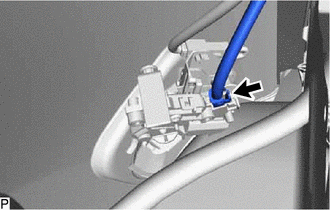

    1. Disconnect the connector.
      GTY435725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

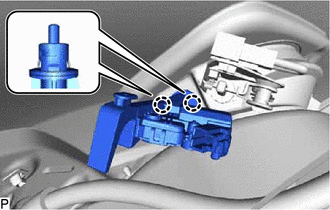

    2. Disengage the 2 claws and remove the fuel lid lock with motor assembly.
      GTY435726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
