  1. INSPECT FUEL LID COURTESY SWITCH
    1. Measure the resistance according to the value(s) in the table below.

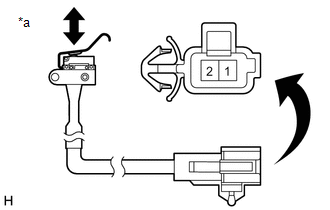

      GTY436577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Lid Courtesy Switch)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Not pushed 10 kΩ or higher
      Pushed Below 1 Ω

      If the result is not as specified, replace the fuel lid courtesy switch.
