Components [02/2014 - ]: Illustration

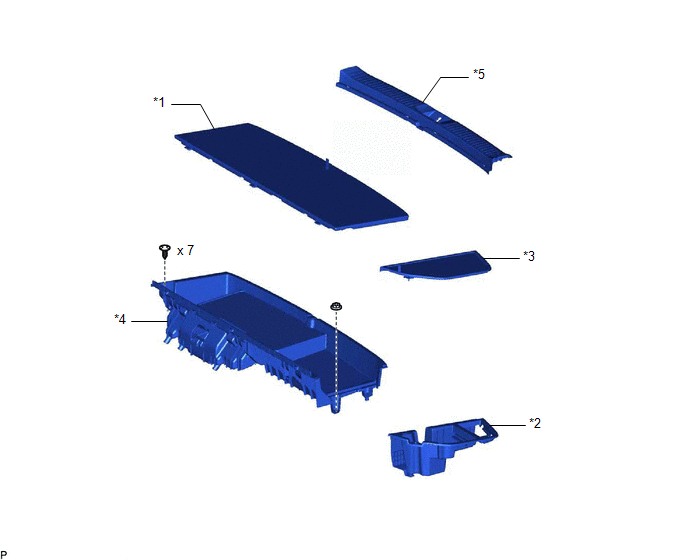

Fig 1: Fuel Lid Courtesy Switch Replacement Components (1 Of 2)
GTY435903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DECK BOARD ASSEMBLY *2 DECK SIDE TRIM BOX LH
*3 NO. 3 DECK BOARD SUB-ASSEMBLY *4 REAR DECK FLOOR BOX
*5 REAR FLOOR FINISH PLATE - -

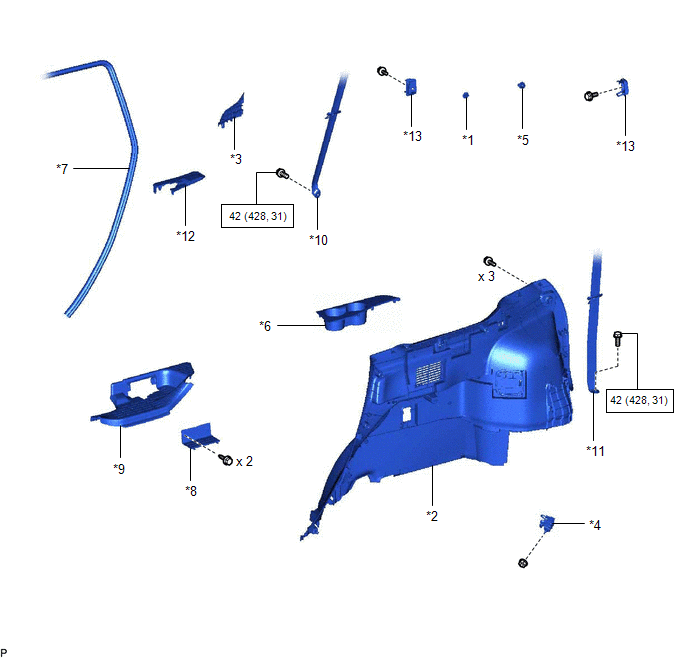

Fig 1: Fuel Lid Courtesy Switch Replacement Components With Torque Specifications (2 Of 2)
GTY442399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DECK TRIM POCKET COVER *2 DECK TRIM SIDE PANEL ASSEMBLY LH
*3 FRONT DECK SIDE TRIM COVER LH *4 FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY
*5 NO. 1 LUGGAGE COMPARTMENT TRIM HOOK *6 NO. 2 DECK SIDE TRIM COVER
*7 REAR DOOR OPENING TRIM WEATHERSTRIP LH *8 REAR DOOR SCUFF PANEL LH
*9 REAR DOOR SCUFF PLATE LH *10 REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
*11 REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH *12 REAR OUTER SEAT TRACK BRACKET COVER LH
*13 ROPE HOOK - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
