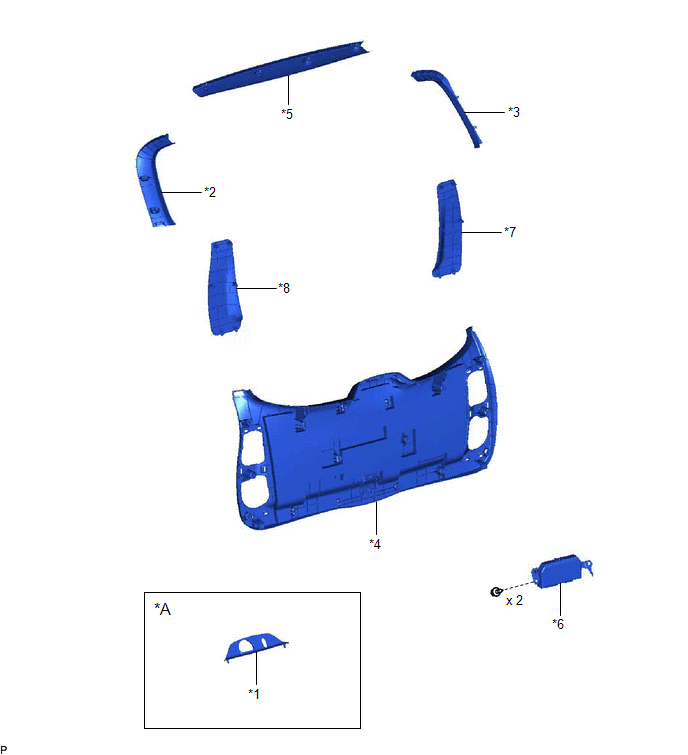

| *A |
for Glass Hatch Type |
- |
- |
| *1 |
BACK DOOR LOCK COVER |
*2 |
BACK DOOR TRIM COVER LH |
| *3 |
BACK DOOR TRIM COVER RH |
*4 |
BACK DOOR TRIM PANEL ASSEMBLY |
| *5 |
BACK WINDOW UPPER TRIM PANEL |
*6 |
MULTIPLEX NETWORK DOOR ECU |
| *7 |
NO. 1 BACK DOOR SERVICE HOLE COVER |
*8 |
NO. 2 BACK DOOR SERVICE HOLE COVER |
