Components [02/2014 - 11/2016]: Illustration

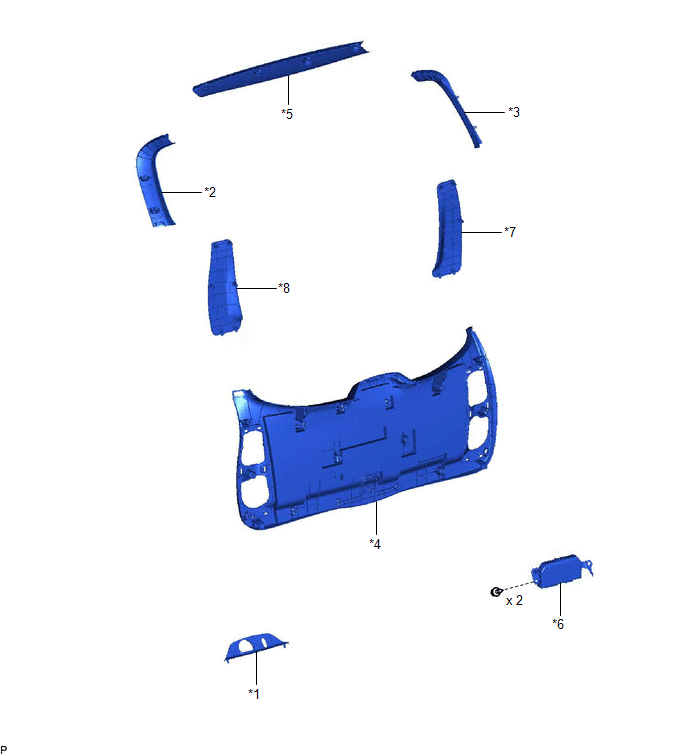

Fig 1: Back Door Closer ECU Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BACK DOOR LOCK COVER	*2	BACK DOOR TRIM COVER LH
*3	BACK DOOR TRIM COVER RH	*4	BACK DOOR TRIM PANEL ASSEMBLY
*5	BACK WINDOW UPPER TRIM PANEL	*6	MULTIPLEX NETWORK DOOR ECU
*7	NO. 1 BACK DOOR SERVICE HOLE COVER	*8	NO. 2 BACK DOOR SERVICE HOLE COVER
