Security Indicator Light Does not Blink [02/2014 - 11/2016]: Procedure

1. Check for DTCs.

   Body Electrical > Smart Key > Trouble Codes

   Powertrain > Hybrid Control > Trouble Codes

   OK

   DTCs are not output.

   Result

   Proceed to
   OK
   NG

Result:  2

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [02/2014 - 11/2016]

Result:  1

OK

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Active Test.
5. Perform the Active Test according to the display on the Techstream.

   Body Electrical > Smart Key > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Immobilizer Indicator	Security indicator light	OFF/ON	-

   Body Electrical > Smart Key > Active Test

   Tester Display
   Immobilizer Indicator

   OK

   The security indicator light (clock assembly) operates normally.

   Result

   Result	Proceed to
   OK	A
   NG	B

Result:  2

B

See step  4

Result:  1

A

See step  3

1. When the immobilizer is set, check that the security indicator light (clock assembly) blinks.*1

   OK

   The security indicator light (clock assembly) blinks normally.

2. When the theft deterrent system is in the arming preparation state, check that the security indicator light (clock assembly) illuminates.*2

   OK

   The security indicator light (clock assembly) illuminates normally.

   Result

   Result	Proceed to
   *1 is NG (*2 is OK)	A
   *2 is NG (*1 is OK)	B

Result:  1

A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [02/2014 - 11/2016]

Result:  2

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [02/2014 - 11/2016]

1. Disconnect the F11 certification ECU (smart key ECU assembly) connector.
2. Disconnect the G7 security indicator light (clock assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F11-20 (IND) - G7-9 (LP)	Always	Below 1 Ω
   F11-20 (IND) or G7-9 (LP) - Body ground	Always	10 kΩ or higher
   G7-8 (E) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  5

1. Connect the F11 certification ECU (smart key ECU assembly) connector.
2. Connect the G7 security indicator light (clock assembly) connector.

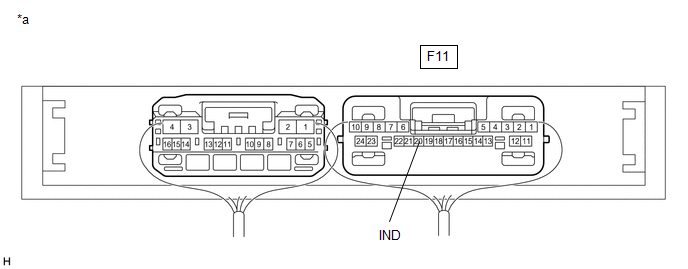

3. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component with harness connected (Certification ECU (Smart Key ECU Assembly))

   -

   -

   OK

   Tester Connection	Condition	Specified Condition
   F11-20 (IND) - Body ground	Power switch off → on (IG)	Pulse generation → Below 2 V

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE SECURITY INDICATOR LIGHT (CLOCK ASSEMBLY). Refer to  REMOVAL [02/2014 - ]

Result:  2

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [02/2014 - 11/2016]
