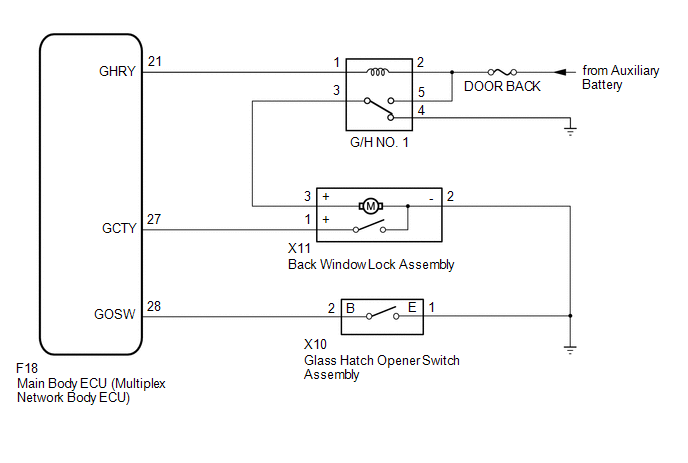

Glass Hatch Opener System does not Operate [02/2014 - ]: Wiring Diagram

GTY425237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
