Terminals Of Combination Meter Assembly [02/2014 - 11/2016]

  1. CHECK COMBINATION METER ASSEMBLY

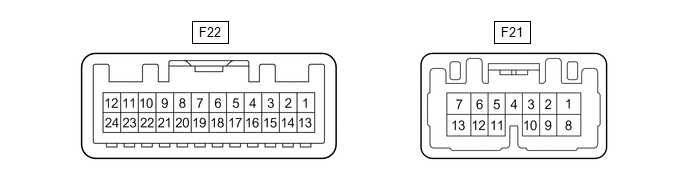

    Fig 1: Combination Meter Assembly Connector Terminal Identification
    GTY425637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F22 combination meter assembly connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F22-1 (B) - Body ground P - Body ground Auxiliary battery power supply Power switch off 11 to 14 V
      F22-13 (IG+) - Body ground G - Body ground Ignition power supply Power switch off Below 1 V
      Power switch on (IG) 11 to 14 V
      F22-20 (ES) - Body ground BR - Body ground Ground Always Below 1 Ω
  2. CHECK AIRBAG SENSOR ASSEMBLY

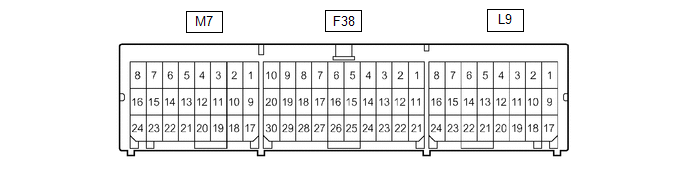

    Fig 2: Airbag Sensor Assembly Connector End View
    GTY453008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. Terminal Symbol Destination
    M7-10 LBE+ Front seat inner belt assembly LH
    M7-18 LBE- Front seat inner belt assembly LH
    L9-16 FSR+ Occupant detection ECU
    L9-24 FSR- Occupant detection ECU
  3. CHECK OCCUPANT DETECTION ECU
    Fig 3: Occupant Detection ECU Connector End View
    GTY453469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage and check for pulses according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      d15-1 (+B) - d15-3 (GND) R - W-B Auxiliary battery Power switch off 11 to 14 V
      d15-2 (DIA) GR Diagnosis (DLC3) -* -*
      d15-3 (GND) - Body ground W-B - Body ground Ground Always Below 1 V
      d15-4 (FSR-) - d15-3 (GND) B - W-B Airbag sensor assembly communication line Always Below 1 V
      d15-5 (BGND) - d15-3 (GND) P - W-B Front passenger buckle switch ground line Always Below 1 V
      d15-6 (IG2) - d15-3 (GND) SB - W-B Power source Power switch off 11 to 14 V
      d15-7 (FSR+) - d15-4 (FSR-) W - B Airbag sensor assembly communication line Power switch off Pulse generation
      d15-8 (BSW) - d15-5 (BGND) G - P Front passenger buckle switch line Always Pulse generation
      d14-1 (SVC1) - d14-5 (SGD1) R - G Front occupant classification sensor power supply line Power switch off 4.9 to 5.1 V
      d14-2 (SVC3) - d14-6 (SGD3) GR - W Rear occupant classification sensor power supply line Power switch off 4.9 to 5.1 V
      d14-3 (SIG1) - d14-5 (SGD1) P - G Front occupant classification sensor signal line Power switch off Pulse generation
      d14-4 (SIG3) - d14-6 (SGD3) SB - W Rear occupant classification sensor signal line Power switch off Pulse generation
      d14-5 (SGD1) - d15-3 (GND) G - W-B Front occupant classification sensor ground line Always Below 1 V
      d14-6 (SGD3) - d15-3 (GND) W - W-B Rear occupant classification sensor ground line Always Below 1 V
      • *: As this is a line that is connected to other systems, voltage changes according to the systems that are connected.
