System Diagram [02/2014 - 11/2016]

Fig 1: Seat Belt Warning System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

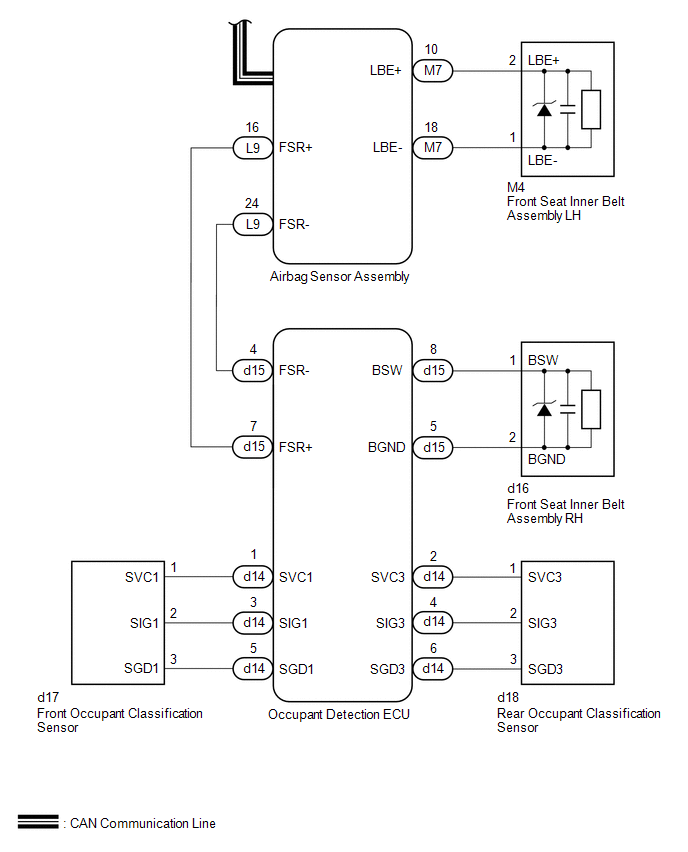

Fig 2: Seat Belt Warning System Wiring Diagram

COMMUNICATION TABLE

Sender	Receiver	Signal	Communication Method
Airbag sensor assembly	Main body ECU (Multiplex network body ECU)	Front seat inner belt assembly LH buckle switch	CAN
Airbag sensor assembly	Combination meter assembly	Front seat inner belt assembly RH buckle switch
Main body ECU (Multiplex network body ECU)	Combination meter assembly	Front seat inner belt assembly LH buckle switch Parking brake switch
Skid control ECU assembly	Combination meter assembly	Vehicle speed
Power management control ECU	Combination meter assembly	Shift position
