Seat Belt Warning System - Diagnostics & Symptom Tests - (Hybrid)
>>
Seat Belt Warning System
>>
Symptom Tests
>>
Rear Seat Belt Warning Light Malfunction [11/2016 - ]
>>

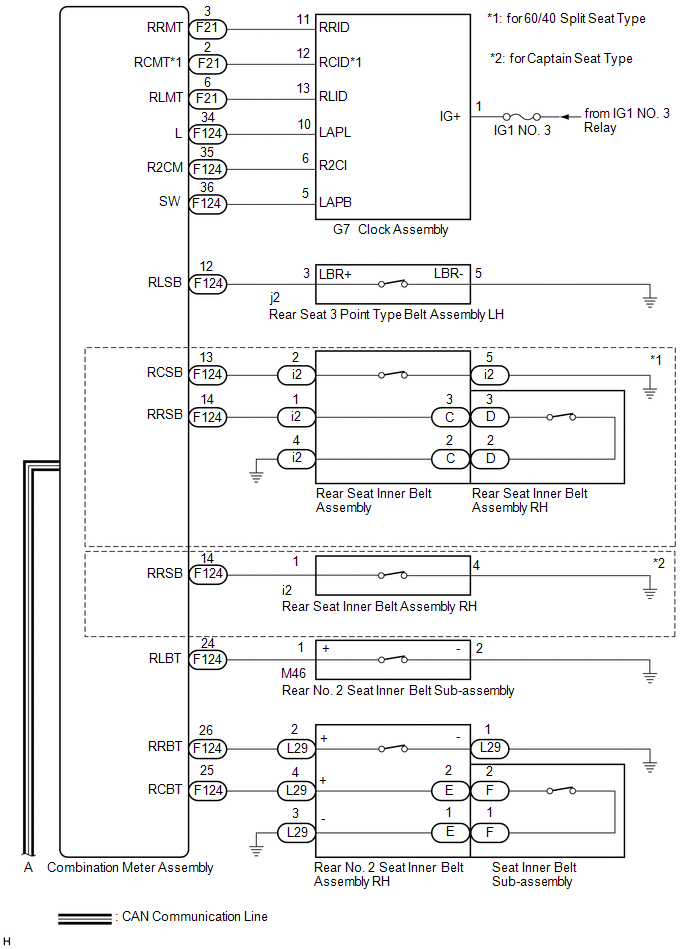

Wiring Diagram
Rear Seat Belt Warning Light Malfunction [11/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
