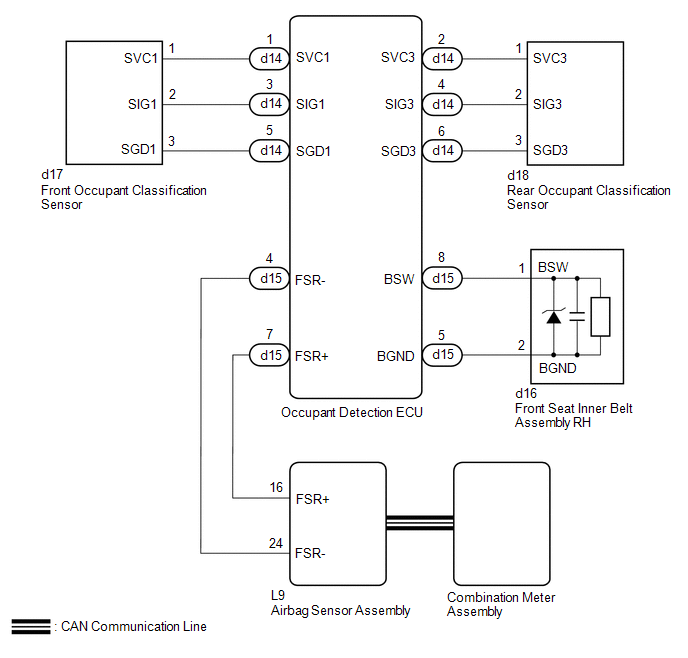

Front Passenger Side Seat Belt Warning Light Malfunction [02/2014 - ]: Wiring Diagram

GTY435709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
