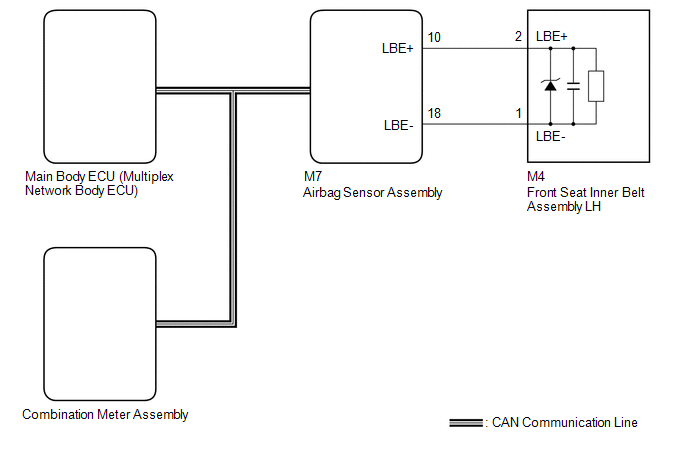

Driver Side Seat Belt Warning Light does not Operate [02/2014 - ]: Wiring Diagram

GTY447828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
