Parts Location [11/2016 - ]: Illustration

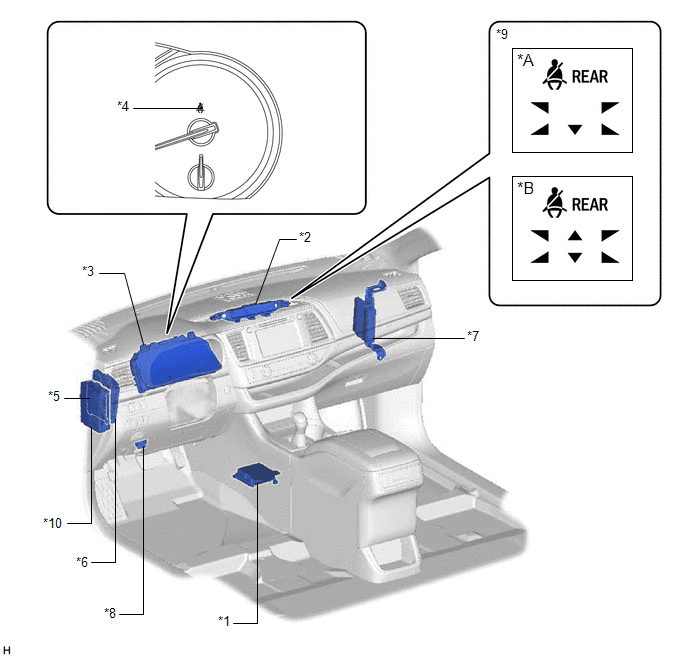

Fig 1: Seat Belt Warning System Components Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Captain Seat Type	*B	for 60/40 Split Seat Type
*1	AIRBAG SENSOR ASSEMBLY	*2	CLOCK ASSEMBLY
*3	COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER	*4	SEAT BELT WARNING LIGHT
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	HYBRID VEHICLE CONTROL ECU ASSEMBLY
*7	SKID CONTROL ECU ASSEMBLY	*8	DLC3
*9	REAR SEAT BELT WARNING LIGHT	*10	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE

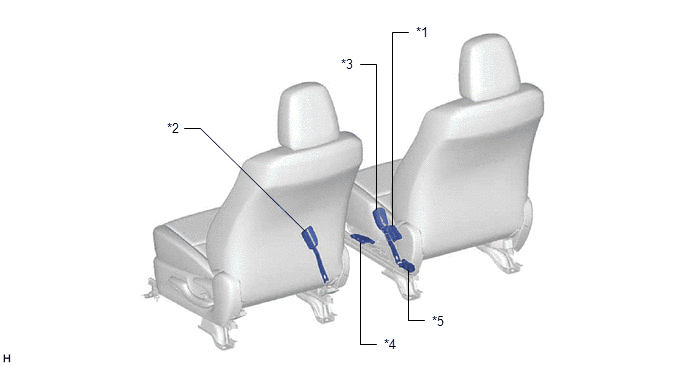

Fig 1: Seat Belt Warning System Components Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	OCCUPANT DETECTION ECU	*2	FRONT SEAT INNER BELT ASSEMBLY LH
*3	FRONT SEAT INNER BELT ASSEMBLY RH	*4	FRONT OCCUPANT CLASSIFICATION SENSOR
*5	REAR OCCUPANT CLASSIFICATION SENSOR	-	-

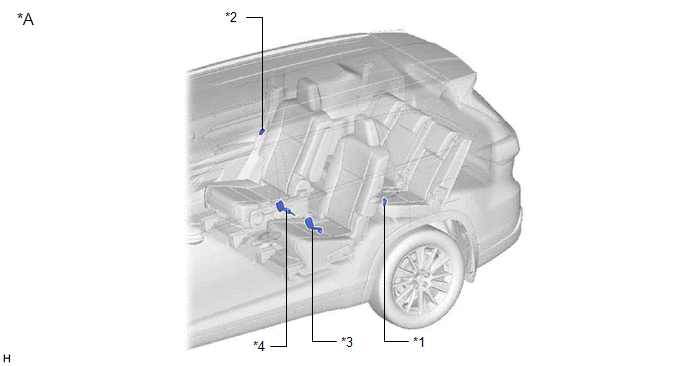

Fig 1: Seat Belt Warning System Components Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Captain Seat Type	-	-
*1	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH SIDE)	*2	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH SIDE)
*3	REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH	*4	REAR SEAT INNER BELT ASSEMBLY RH

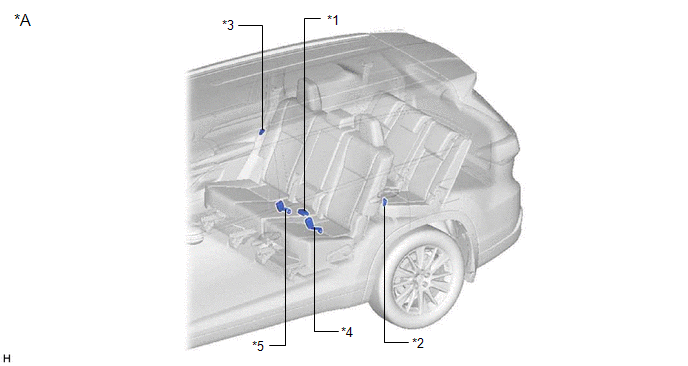

Fig 1: Seat Belt Warning System Components Location (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 60/40 Split Seat Type	-	-
*1	REAR SEAT INNER BELT ASSEMBLY	*2	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH SIDE)
*3	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH SIDE)	*4	REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH
*5	REAR SEAT INNER BELT ASSEMBLY RH	-	-

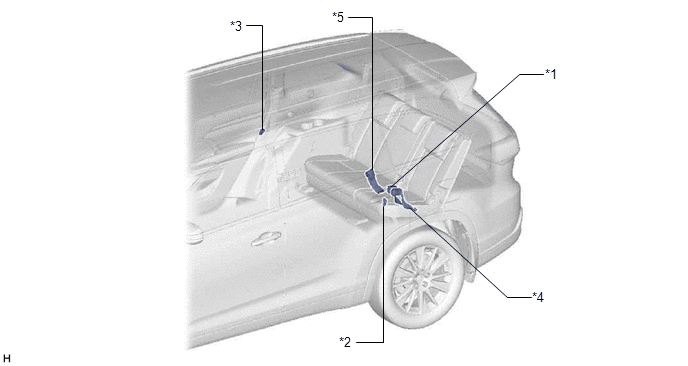

Fig 1: Seat Belt Warning System Components Location (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEAT INNER BELT SUB-ASSEMBLY	*2	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH SIDE)
*3	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH SIDE)	*4	REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
*5	REAR NO. 2 SEAT INNER BELT ASSEMBLY RH	-	-
