Parts Location [02/2014 - 11/2016]: Illustration

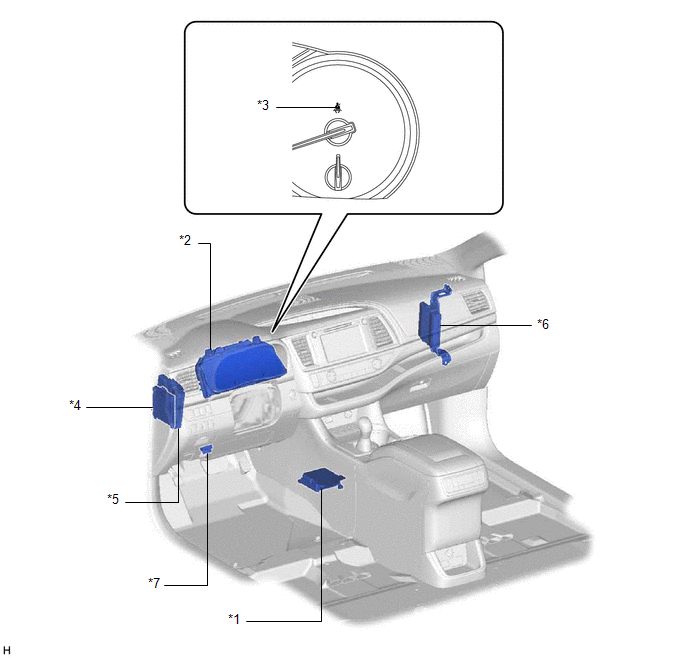

Fig 1: Seat Belt Warning System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIRBAG SENSOR ASSEMBLY	*2	COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER
*3	SEAT BELT WARNING LIGHT	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	POWER MANAGEMENT CONTROL ECU	*6	SKID CONTROL ECU ASSEMBLY
*7	DLC3	-	-

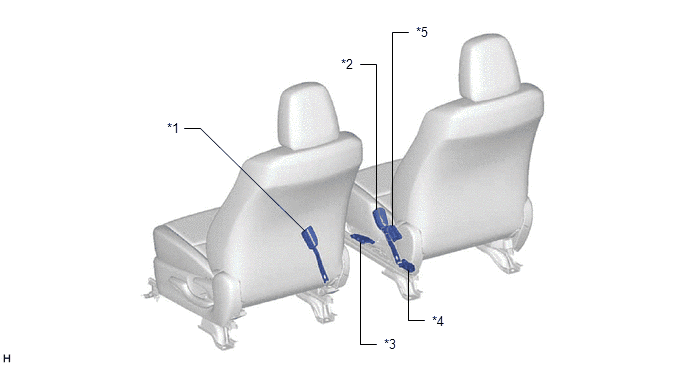

Fig 1: Seat Belt Warning System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	FRONT SEAT INNER BELT ASSEMBLY RH
*3	FRONT OCCUPANT CLASSIFICATION SENSOR	*4	REAR OCCUPANT CLASSIFICATION SENSOR
*5	OCCUPANT DETECTION ECU	-	-
