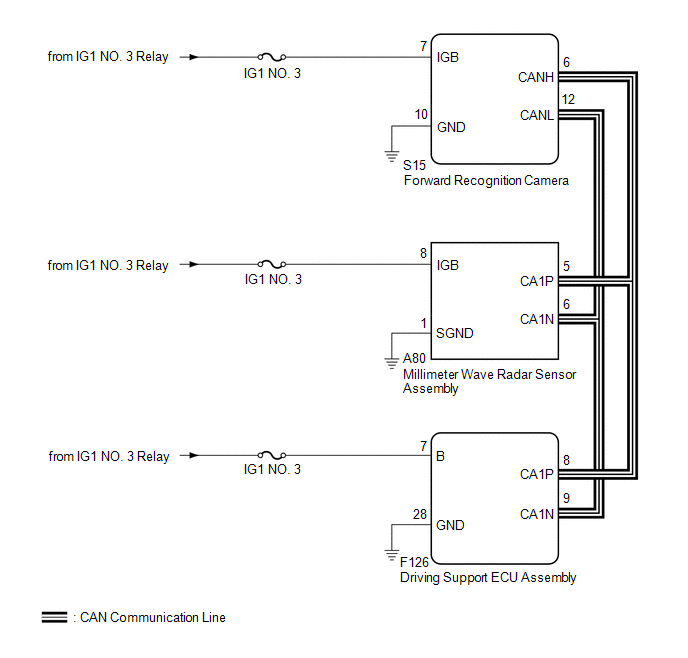

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [11/2016 - ]: Wiring Diagram

GTY713004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
