Components [02/2014 - ]: Illustration

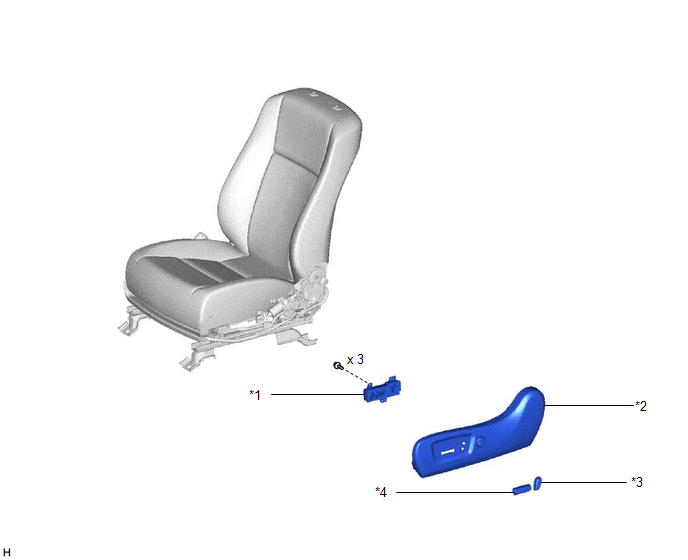

Fig 1: Power Seat Switch (W/O Seat Position Memory System) Replacement Components
GTY445757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT POWER SEAT SWITCH *2 FRONT SEAT CUSHION SHIELD
*3 RECLINING POWER SEAT SWITCH KNOB *4 SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
