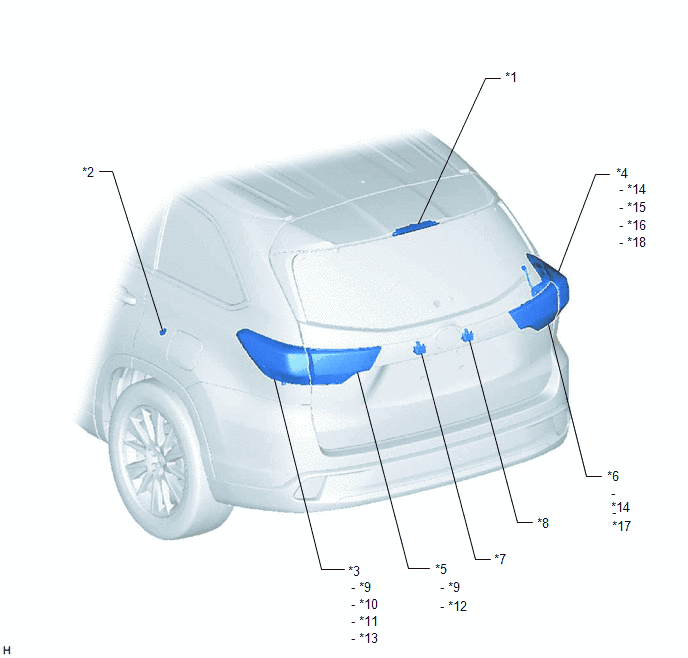

Illustration 3
| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | RADIO SETTING CONDENSER |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | REAR LIGHT ASSEMBLY LH | *6 | REAR LIGHT ASSEMBLY RH |
| *7 | LICENSE PLATE LIGHT ASSEMBLY LH | *8 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *9 | TAILLIGHT LH | *10 | STOP LIGHT LH |
| *11 | TURN SIGNAL LIGHT LH | *12 | BACK-UP LIGHT LH |
| *13 | REAR SIDE MARKER LIGHT LH | *14 | TAILLIGHT RH |
| *15 | STOP LIGHT RH | *16 | TURN SIGNAL LIGHT RH |
| *17 | BACK-UP LIGHT RH | *18 | REAR SIDE MARKER LIGHT RH |
