Illustration 2

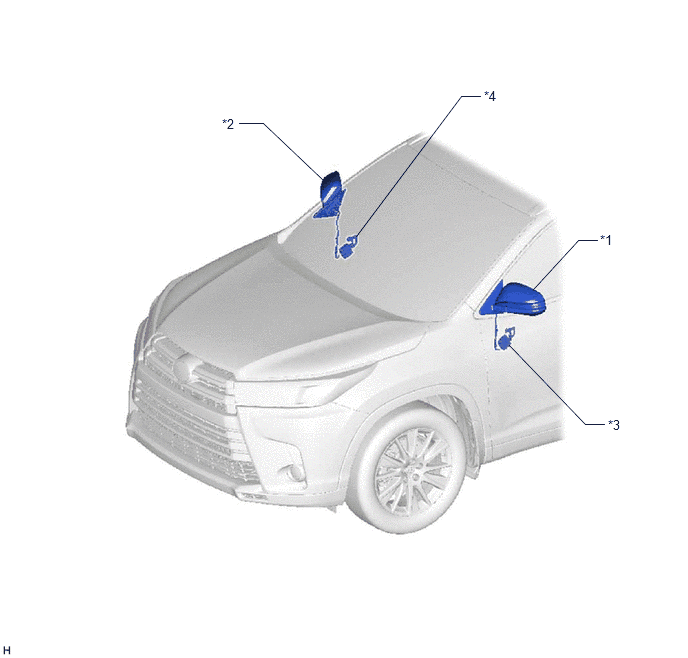

Fig 1: Lighting System Component Location, 11/2016- (2 Of 4)
GTY722358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OUTER REAR VIEW MIRROR ASSEMBLY LH
- OUTER MIRROR LIGHT ASSEMBLY LH		 *2 OUTER REAR VIEW MIRROR ASSEMBLY RH
- OUTER MIRROR LIGHT ASSEMBLY RH
*3 OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Door Mirror Foot Light) *4 OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Door Mirror Foot Light)
