Illustration 1

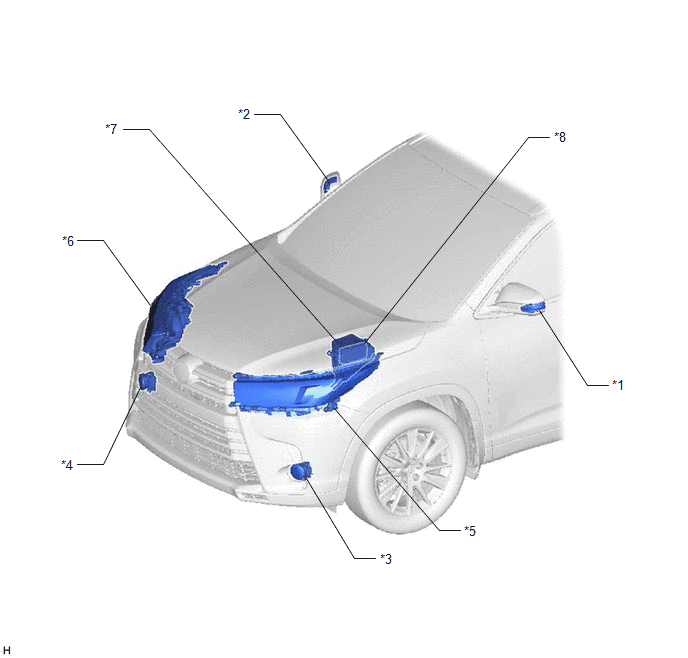

Fig 1: Lighting System Component Location, 11/2016- (1 Of 4)
GTY724292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SIDE TURN SIGNAL LIGHT ASSEMBLY LH *2 SIDE TURN SIGNAL LIGHT ASSEMBLY RH
*3 FOG LIGHT ASSEMBLY LH *4 FOG LIGHT ASSEMBLY RH
*5 HEADLIGHT ASSEMBLY LH *6 HEADLIGHT ASSEMBLY RH
*7 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- BACK UP LP RELAY
- MPX-B NO. 1 FUSE
- DC/DC FUSE
- H-LP LO LH FUSE
- H-LP LO RH FUSE
- STOP FUSE		 *8 SEMICONDUCTOR PWR INTEGRATION ECU
