DTC B15C3: Speaker Output Short [11/2016 - ]: Wiring Diagram

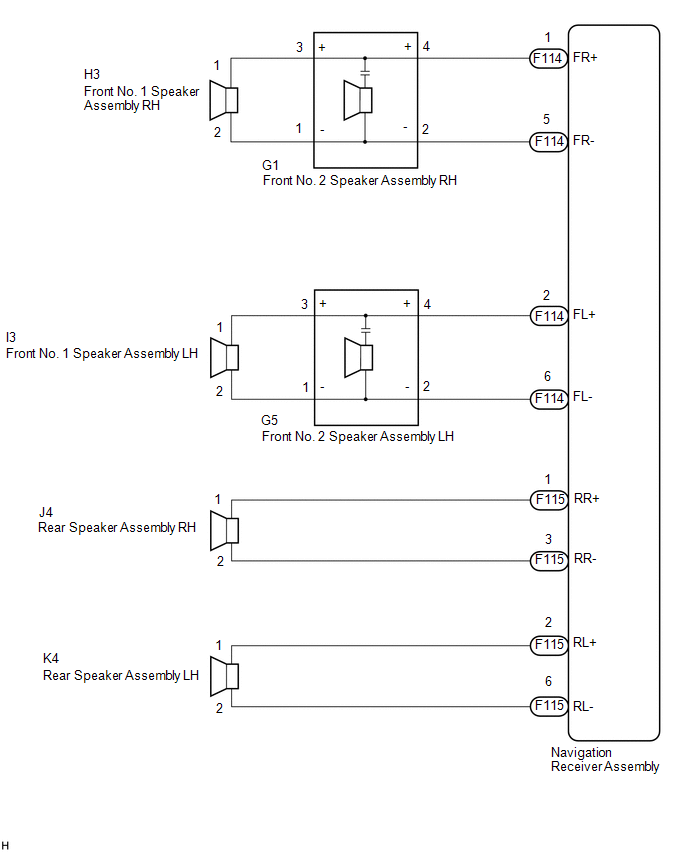

  1. for 6 Speakers
    GTY735660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

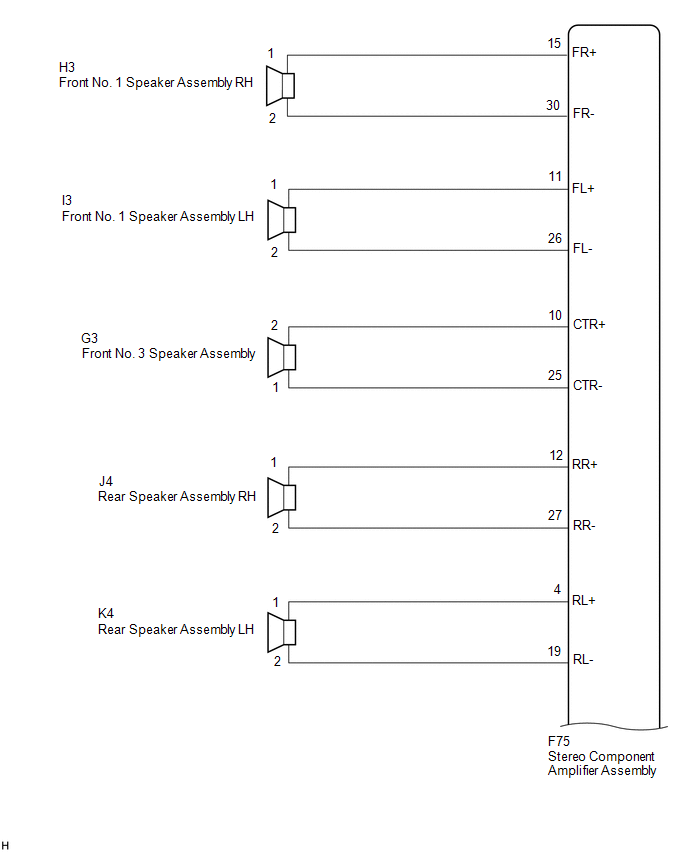

  2. for 12 Speakers
    GTY699691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

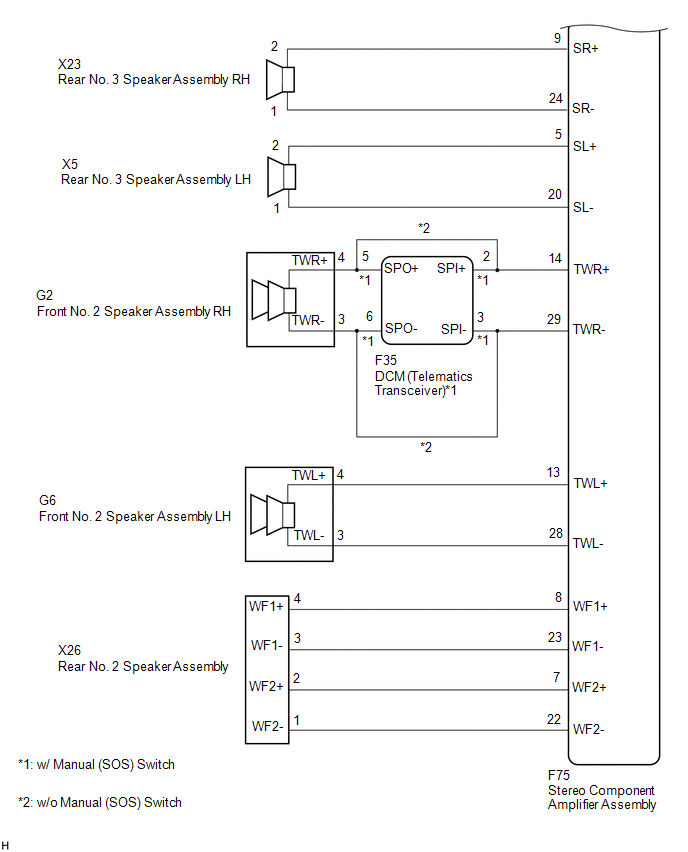

  3. GTY715664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
