DTC B15C3: Speaker Output Short [02/2014 - 11/2016]: Wiring Diagram

  1. for 6 Speakers

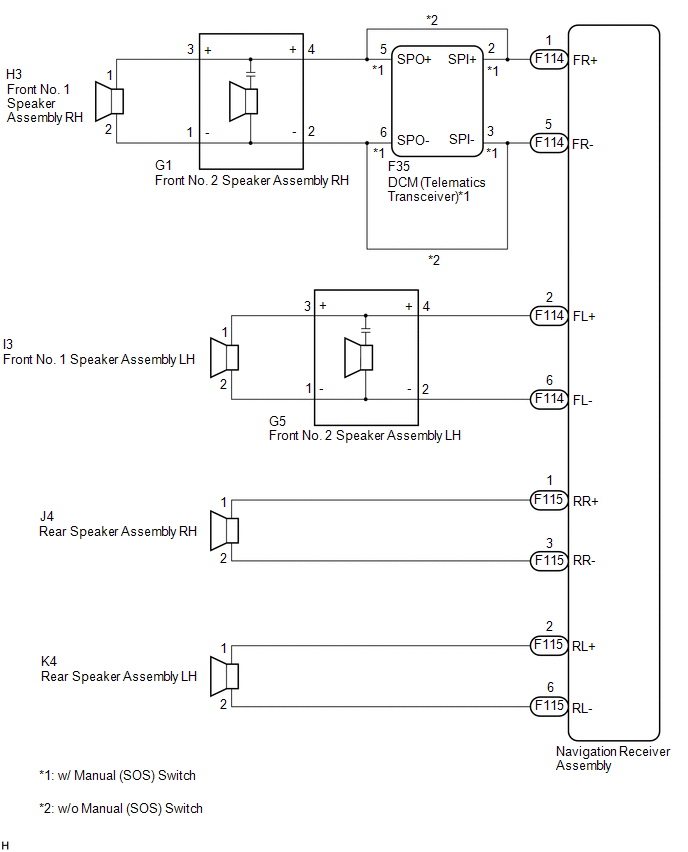

    GTY434598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 12 Speakers

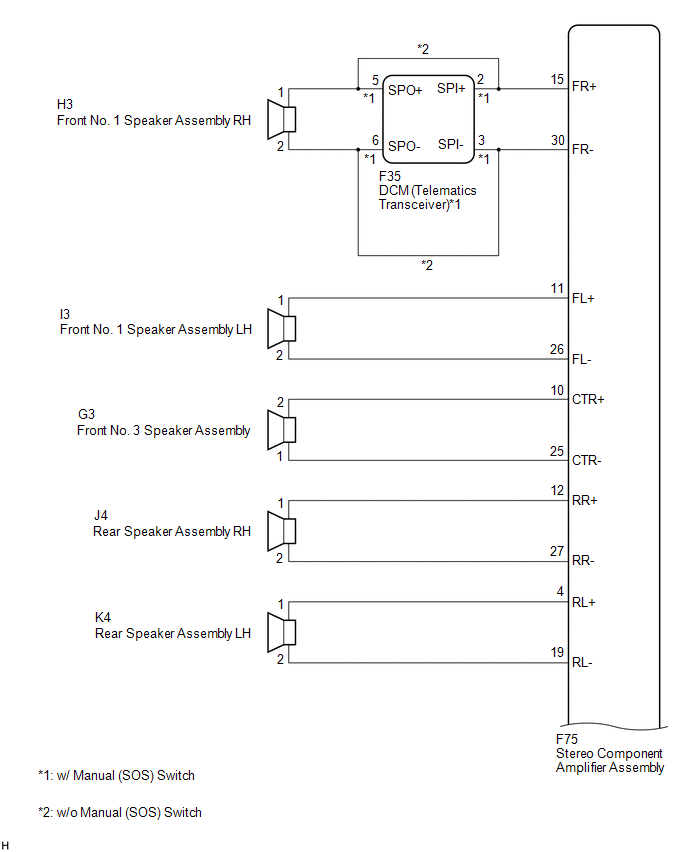

    GTY431324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

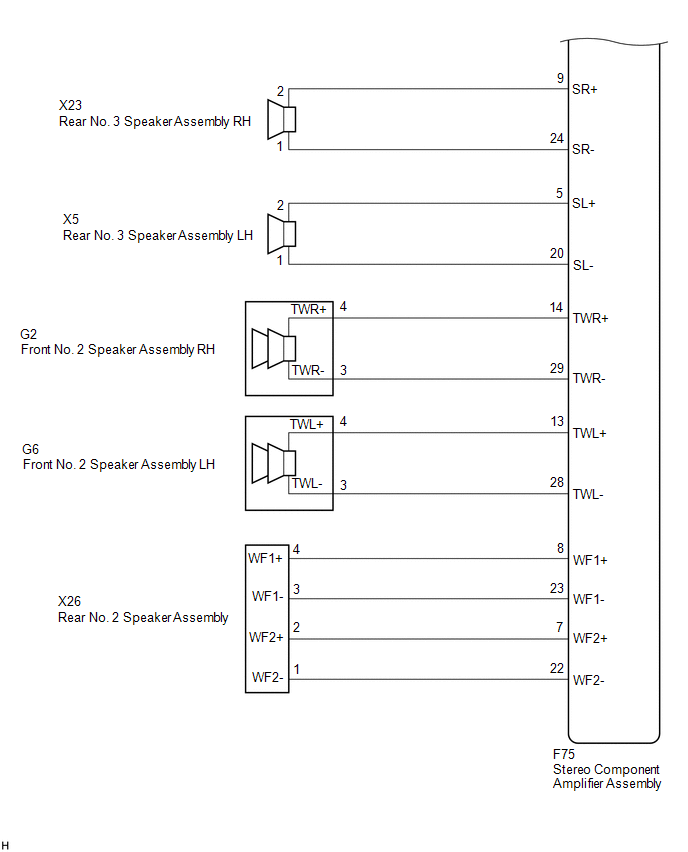

    GTY448782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
