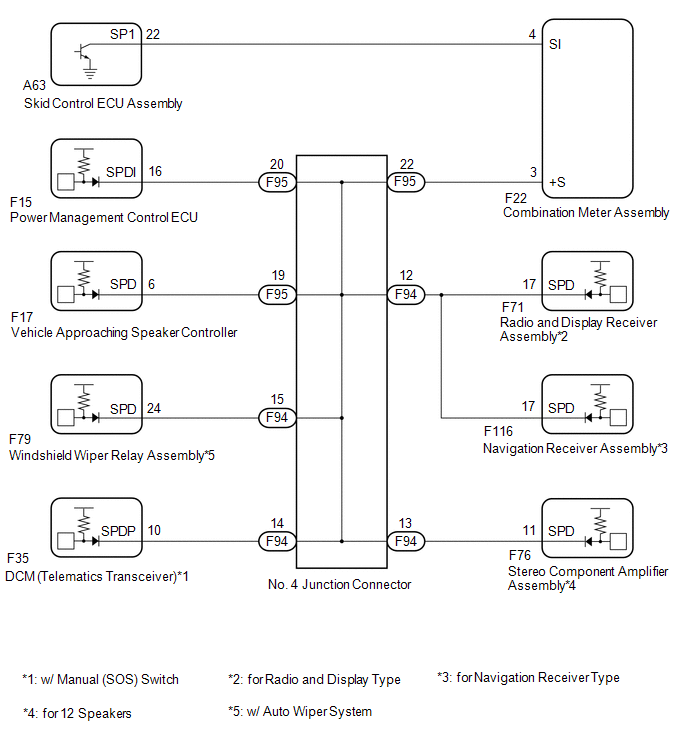

DTC B15C2: Speed Signal Malfunction [02/2014 - 11/2016]: Wiring Diagram

GTY602899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
