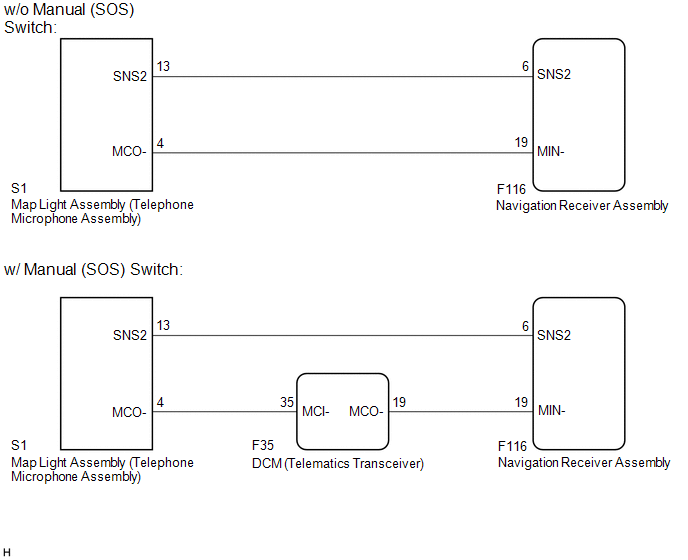

DTC B1579: Voice Recognition Microphone Disconnected [02/2014 - ]: Wiring Diagram

GTY451560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
