Components [02/2014 - ]: Illustration

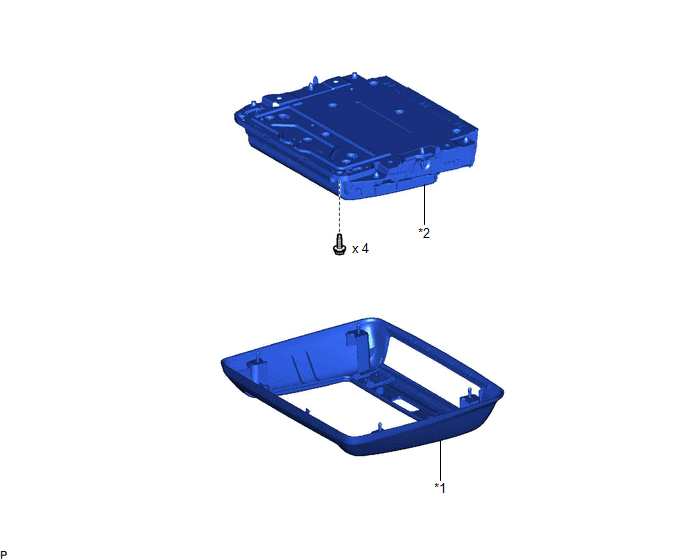

Fig 1: Television Display Replacement Components

GTY442530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

TELEVISION BASE

*2

TELEVISION DISPLAY ASSEMBLY
