Removal [02/2014 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)

    Refer to REMOVAL [02/2014 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  2. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)

    Refer to REMOVAL [02/2014 - ]

  3. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  6. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 31

  7. REMOVE CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 32

  8. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  10. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR NO. 2 AIR DUCT

    Refer to PROCEDURE - Step 21 , or refer to PROCEDURE - Step 21

  13. REMOVE REAR NO. 1 AIR DUCT

    Refer to PROCEDURE - Step 22 , or refer to PROCEDURE - Step 22

  14. REMOVE REAR NO. 4 AIR DUCT

    Refer to PROCEDURE - Step 23 , or refer to PROCEDURE - Step 23

  15. REMOVE REAR NO. 3 AIR DUCT

    Refer to PROCEDURE - Step 24 , or refer to PROCEDURE - Step 24

  16. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  17. REMOVE SHIFT LEVER SUPPORT

    Refer to PROCEDURE - Step 26 , or refer to PROCEDURE - Step 26

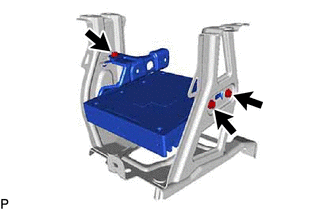

  18. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Remove the 3 bolts and stereo component amplifier assembly with bracket.
      GTY452182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 AMPLIFIER BRACKET

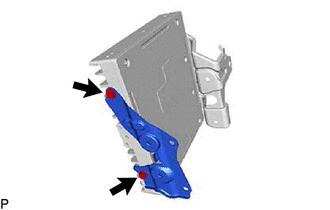

    1. w/o Manual (SOS) Switch:
      GTY431992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws and No. 2 amplifier bracket.

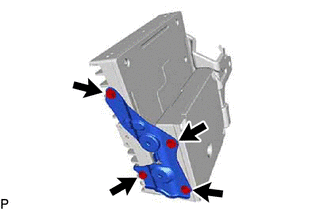

    2. w/ Manual (SOS) Switch:
      GTY431993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 screws and No. 2 amplifier bracket.
  20. REMOVE NO. 1 AMPLIFIER BRACKET
    1. w/o Manual (SOS) Switch:
      GTY431990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws and No. 1 amplifier bracket.

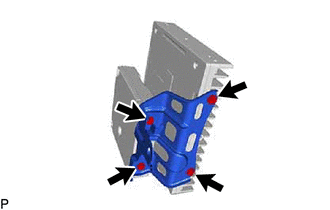

    2. w/ Manual (SOS) Switch:
      GTY431987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 screws and No. 1 amplifier bracket.
  21. REMOVE DCM (TELEMATICS TRANSCEIVER) ASSEMBLY (w/ Manual (SOS) Switch)
  22. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
