Components [02/2014 - ]: Illustration
| *1 | CONSOLE BOX INSERT | *2 | COWL SIDE TRIM SUB-ASSEMBLY LH |
| *3 | COWL SIDE TRIM SUB-ASSEMBLY RH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | FRONT DOOR SCUFF PLATE RH | *6 | FRONT NO. 2 CONSOLE BOX INSERT |

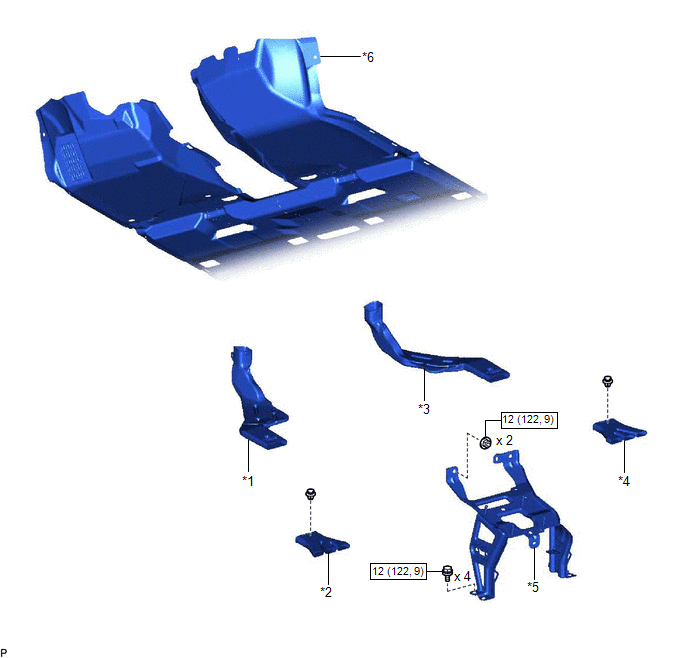

| Callout | Description | Callout | Description |
| *1 | REAR NO. 1 AIR DUCT | *2 | REAR NO. 2 AIR DUCT |
| *3 | REAR NO. 3 AIR DUCT | *4 | REAR NO. 4 AIR DUCT |
| *5 | SHIFT LEVER SUPPORT | *6 | FRONT FLOOR CARPET ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
