Components [02/2014 - ]: Illustration

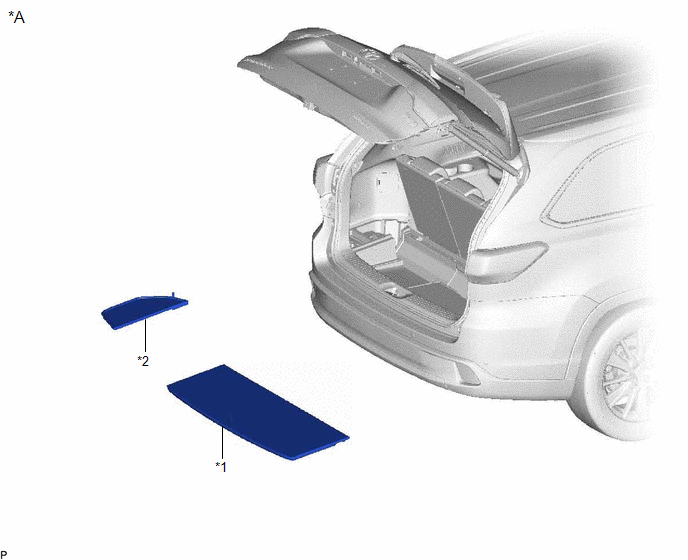

Fig 1: Satellite Radio Tuner Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Navigation Receiver Type	-	-
*1	DECK BOARD ASSEMBLY	*2	NO. 3 DECK BOARD SUB-ASSEMBLY

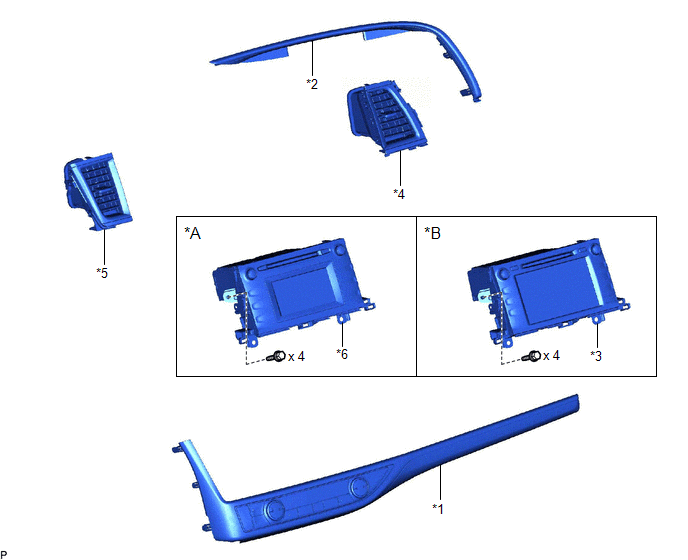

Fig 1: Satellite Radio Tuner Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Radio and Display Type	*B	for Navigation Receiver Type
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY	*2	CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
*3	NAVIGATION RECEIVER ASSEMBLY WITH BRACKET	*4	NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
*5	NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY	*6	RADIO RECEIVER ASSEMBLY WITH BRACKET

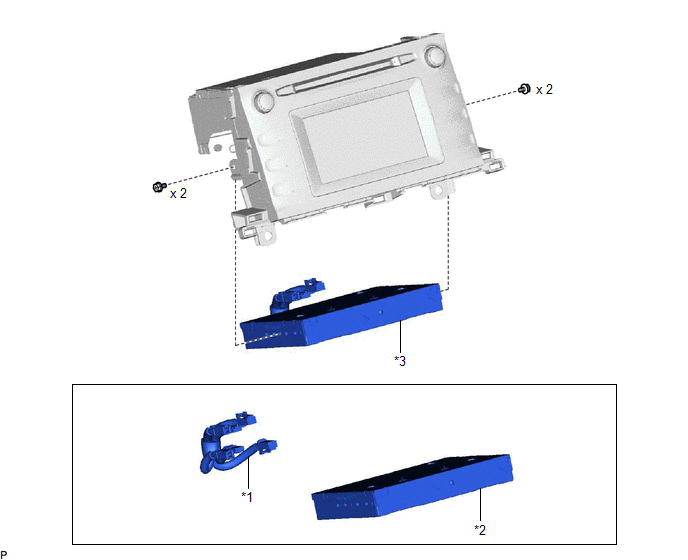

Fig 1: Satellite Radio Tuner Replacement Components (3 Of 3)

*1	NAVIGATION WIRE	*2	STEREO COMPONENT TUNER ASSEMBLY
*3	STEREO COMPONENT TUNER ASSEMBLY WITH WIRE	-	-
