Removal [02/2014 - ]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2015] , or refer to REMOVAL [11/2015 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  2. REMOVE SATELLITE RADIO ANTENNA WITH COVER

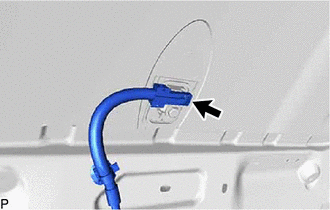

    1. Disconnect the connector.
      GTY423965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

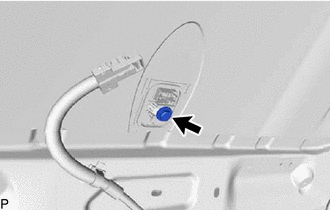

    2. Remove the bolt.
      GTY423964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

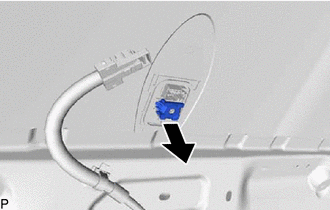

    3. Pull the washer and holder as shown in the illustration and remove the satellite radio antenna with cover.
      GTY450435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SATELLITE RADIO ANTENNA ASSEMBLY (TELEPHONE ANTENNA ASSEMBLY)

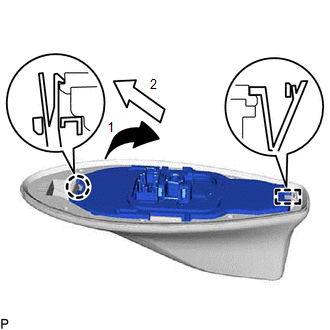

    1. Pull the satellite radio antenna assembly (telephone antenna assembly) in the direction indicated by the arrow (1) shown in the illustration to disengage the claw.
      GTY428037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the satellite radio antenna assembly (telephone antenna assembly) in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the satellite radio antenna assembly (telephone antenna assembly).

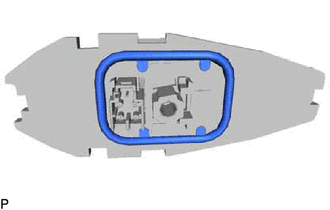

    3. When reusing the satellite radio antenna assembly (telephone antenna assembly):
      1. Remove the seal.
        GTY430893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
