Installation [02/2014 - ]: Procedure

1. When reusing the satellite radio antenna assembly (telephone antenna assembly):
   1. Install a new seal.

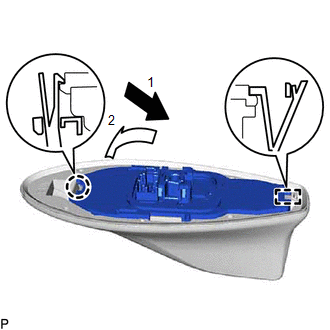

2. Push the satellite radio antenna assembly (telephone antenna assembly) in the direction indicated by the arrow (1) shown in the illustration to engage the guide.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Push the satellite radio antenna assembly (telephone antenna assembly) in the direction indicated by the arrow (2) shown in the illustration to engage the claw and install the satellite radio antenna assembly (telephone antenna assembly).

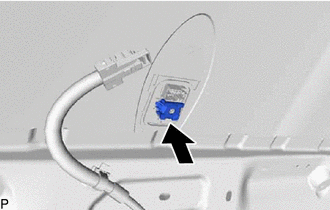

1. Install a new washer and holder as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the bolt.

   Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

3. Connect the connector to install the satellite radio antenna with cover.

Refer to INSTALLATION [02/2014 - 11/2015] , or refer to INSTALLATION [11/2015 - 11/2016] , or refer to INSTALLATION [11/2016 - ]
