Components [02/2014 - ]: Illustration

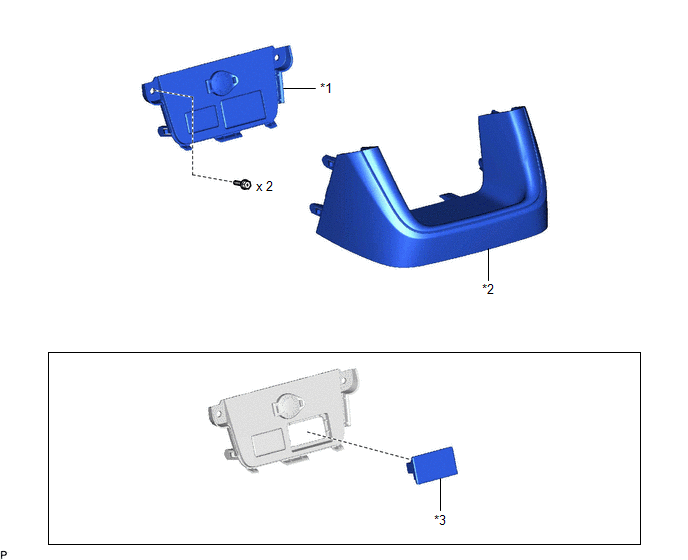

Fig 1: Stereo Jack Adapter Assembly (For Rear Side) Replacement Components
GTY430080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 CONSOLE BOX HOLE COVER *2 REAR CONSOLE LOWER BOX
*3 VIDEO (VIDEO ADAPTER) TERMINAL - -
