Removal [02/2014 - 11/2016]: Procedure
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [02/2014 - ]
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 11
- REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 15
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE NO. 2 SWITCH HOLE BASE
Refer to PROCEDURE - Step 30
- REMOVE FRONT NO. 2 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 31
- REMOVE CONSOLE BOX INSERT
Refer to PROCEDURE - Step 32
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:
Use the same procedure as for the LH side.
- REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 39
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 40
- REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 41
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
Refer to PROCEDURE - Step 42
- REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 47

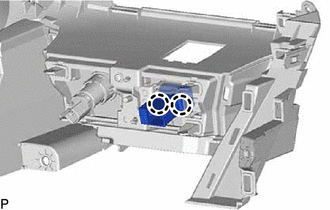

- REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY
