Components [02/2014 - ]: Illustration

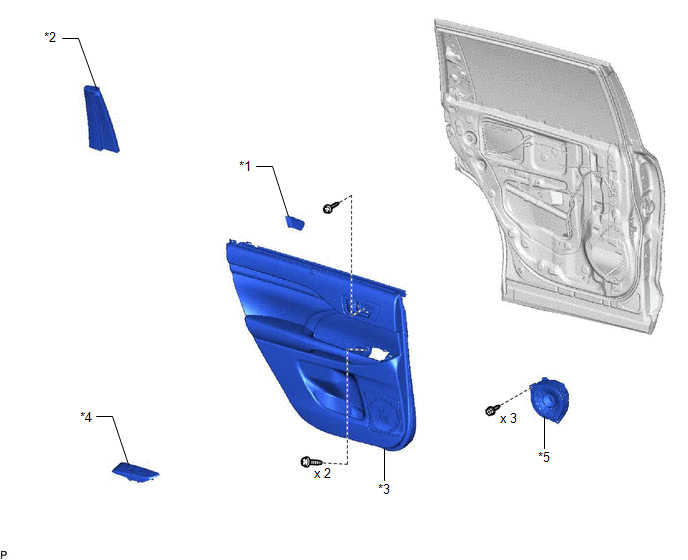

Fig 1: Rear Door Speaker Replacement Components
GTY447509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR DOOR INSIDE HANDLE BEZEL PLUG *2 REAR DOOR REAR GUIDE SEAL
*3 REAR DOOR TRIM BOARD SUB-ASSEMBLY *4 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
*5 REAR SPEAKER ASSEMBLY - -
