Components [02/2014 - ]: Illustration

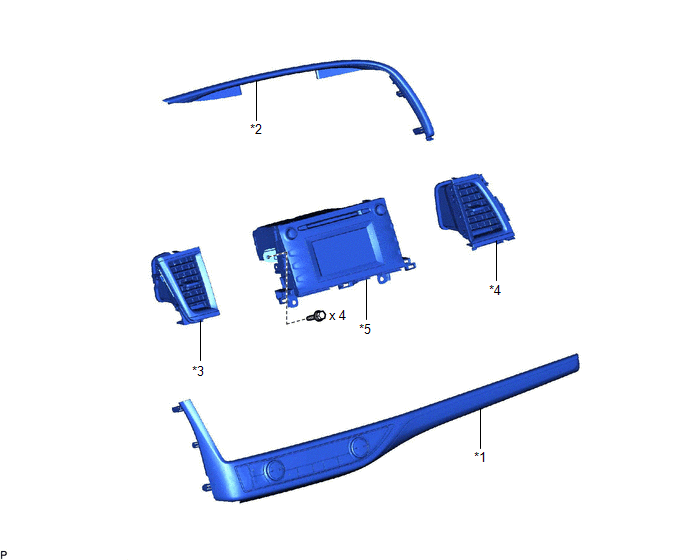

Fig 1: Radio Receiver Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY	*2	CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
*3	NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY	*4	NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
*5	RADIO RECEIVER ASSEMBLY WITH BRACKET	-	-

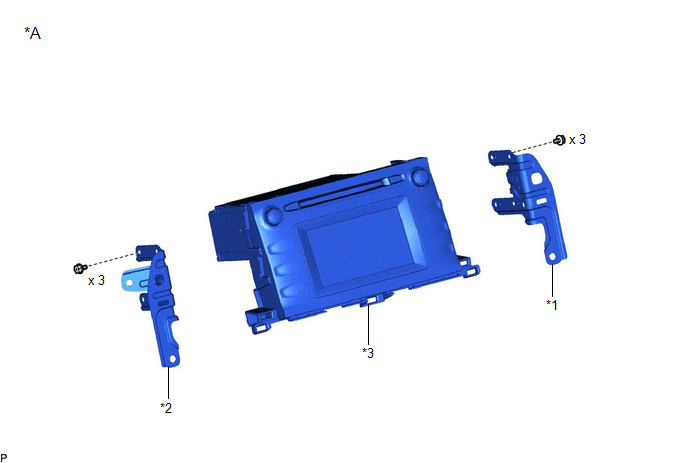

Fig 1: Radio Receiver Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Satellite Radio	-	-
*1	NO. 1 RADIO RECEIVER BRACKET	*2	NO. 2 RADIO RECEIVER BRACKET
*3	RADIO AND DISPLAY RECEIVER ASSEMBLY	-	-

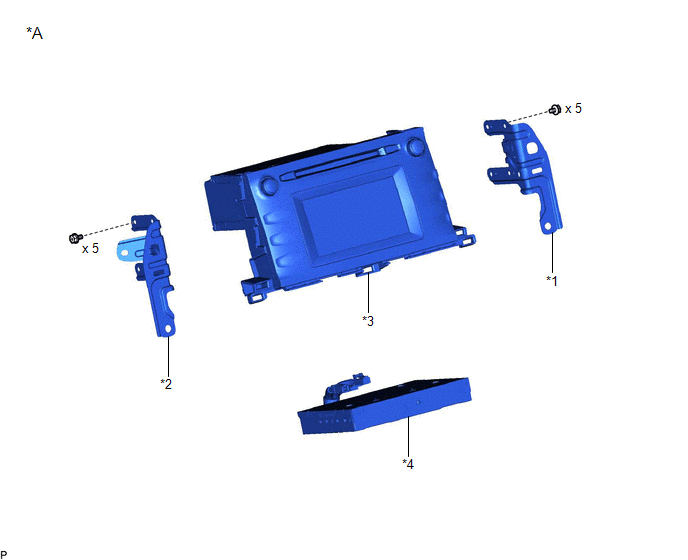

Fig 1: Radio Receiver Replacement Components (3 Of 3)

*A	w/ Satellite Radio	-	-
*1	NO. 1 RADIO RECEIVER BRACKET	*2	NO. 2 RADIO RECEIVER BRACKET
*3	RADIO AND DISPLAY RECEIVER ASSEMBLY	*4	STEREO COMPONENT TUNER ASSEMBLY WITH WIRE
