Components [02/2014 - ]: Illustration

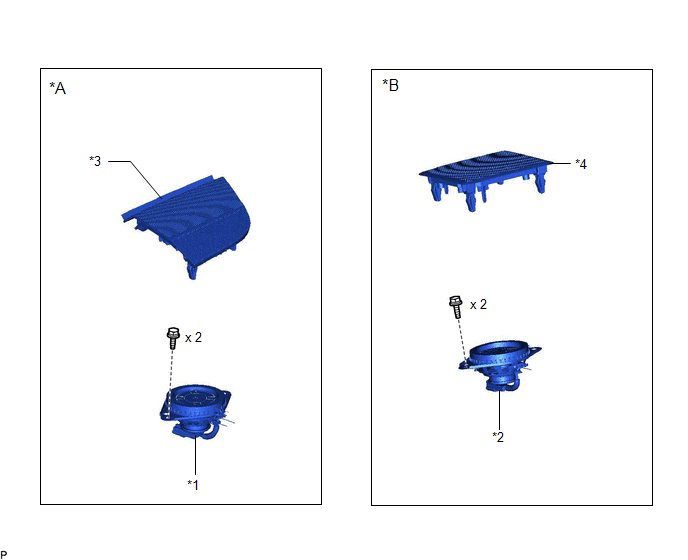

Fig 1: Instrument Panel Speaker Replacement Components
GTY444613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Side *B for Center
*1 FRONT NO. 2 SPEAKER ASSEMBLY *2 FRONT NO. 3 SPEAKER ASSEMBLY
*3 NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY *4 NO. 1 SPEAKER OPENING COVER ASSEMBLY
