Components [02/2014 - 11/2016]: Illustration

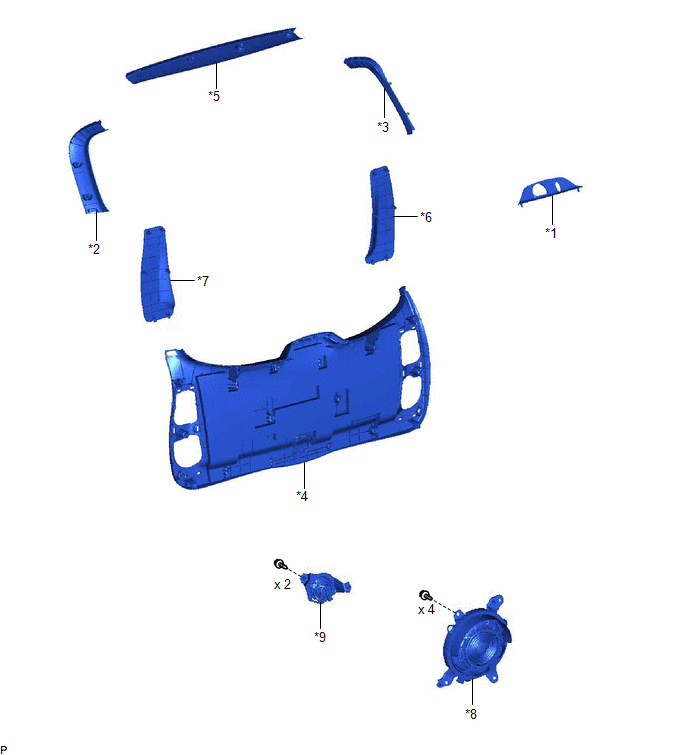

Fig 1: Back Door Speaker Replacement Components
GTY435058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BACK DOOR LOCK COVER *2 BACK DOOR TRIM COVER LH
*3 BACK DOOR TRIM COVER RH *4 BACK DOOR TRIM PANEL ASSEMBLY
*5 BACK WINDOW UPPER TRIM PANEL *6 NO. 1 BACK DOOR SERVICE HOLE COVER
*7 NO. 2 BACK DOOR SERVICE HOLE COVER *8 REAR NO. 2 SPEAKER ASSEMBLY
*9 REAR NO. 3 SPEAKER ASSEMBLY - -
