Installation [02/2014 - ]: Procedure

INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY

HINT:

Butyl tape and adhesive tape are not available as supply parts. If these pieces of tape still have enough adhesion to secure the No. 1 amplifier antenna assembly to the roof headlining assembly, reuse them. If the adhesive tape and/or the butyl tape is no longer sticky, apply new tape following the procedure below.

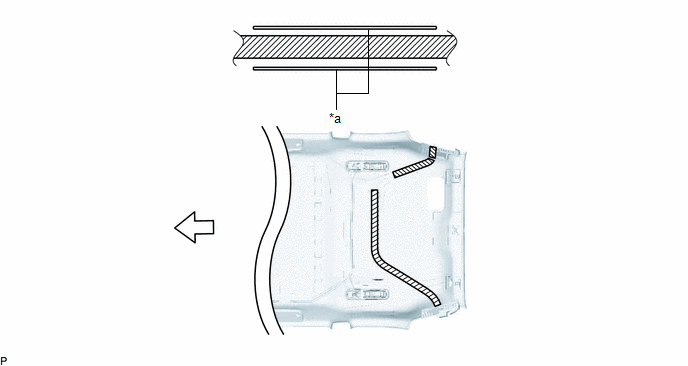

Apply new butyl tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Marking	-	-
	Butyl tape		Front

Remove the old butyl tape from the roof headlining assembly.
Prepare the appropriate amount of new butyl tape.
HINT:

Be careful not to touch the adhesive surface.
Apply the butyl tape to the roof headlining assembly while aligning the tape with the markings on the roof headlining assembly.
Peel off the release paper from the butyl tape.

Install the No. 1 amplifier antenna assembly to the roof headlining assembly from the rear of the roof headlining assembly.

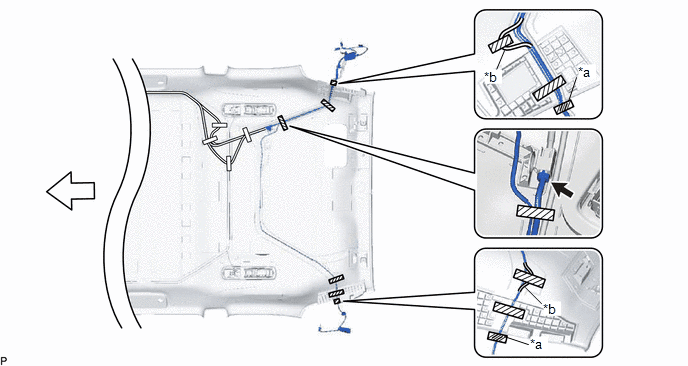

*a	Protrusion	*b	Adjustment Area
	Adhesive Tape		Marking Tape
	Front	-	-

Connect the connector.
Put the pieces of tape back to the positions shown in the illustration in order to secure the No. 1 amplifier antenna assembly and washer hose to the roof headlining assembly.
HINT:
- If the tape is no longer sticky, use other tape, such as packing tape, that has enough adhesion to secure the antenna cord to the roof headlining assembly.
- Align the marking tape on the No. 1 amplifier antenna assembly with the protrusion of the roof headlining assembly, and wrap tape around the No. 1 amplifier antenna assembly and roof headlining assembly once or twice to securely hold them.
- Secure the extra length of the No. 1 amplifier antenna assembly in the adjustment area shown in the illustration.

INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION [02/2014 - 11/2015] , or refer to INSTALLATION [11/2015 - 11/2016] , or refer to INSTALLATION [11/2016 - ]
