Components [02/2014 - ]: Illustration

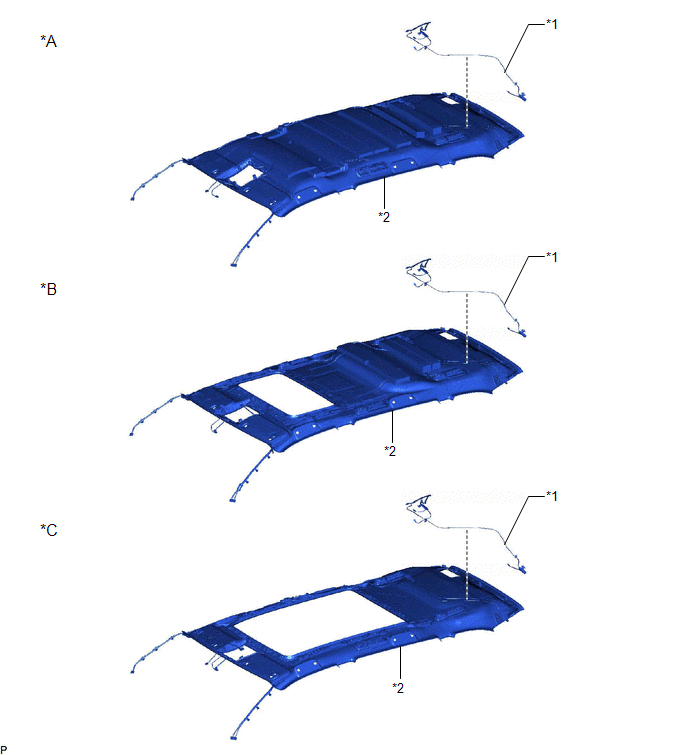

Fig 1: Amplifier Antenna Replacement Components
GTY448821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Normal Roof *B for Sliding Roof
*C for Panoramic Moon Roof - -
*1 NO. 1 AMPLIFIER ANTENNA ASSEMBLY *2 ROOF HEADLINING ASSEMBLY
