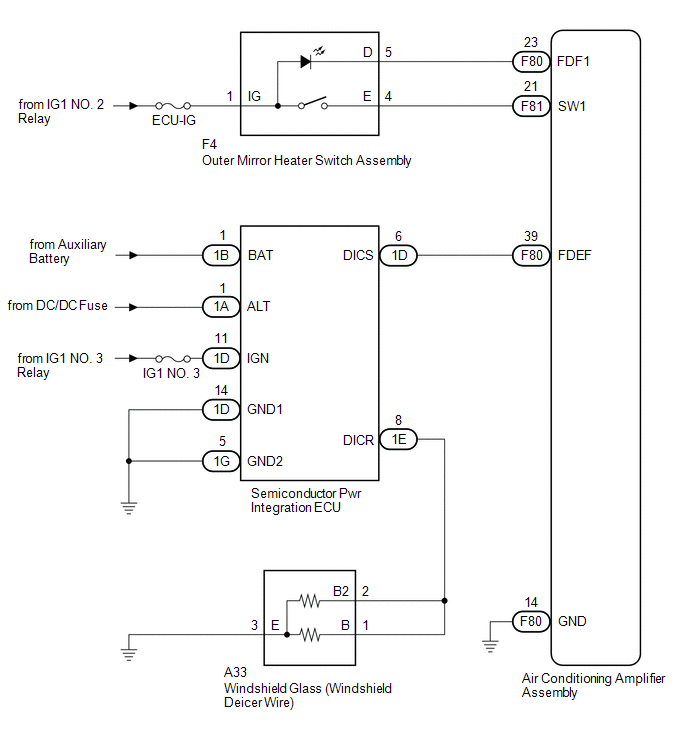

Windshield Deicer Does Not Operate [02/2014 - ]: Wiring Diagram

GTY426522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
