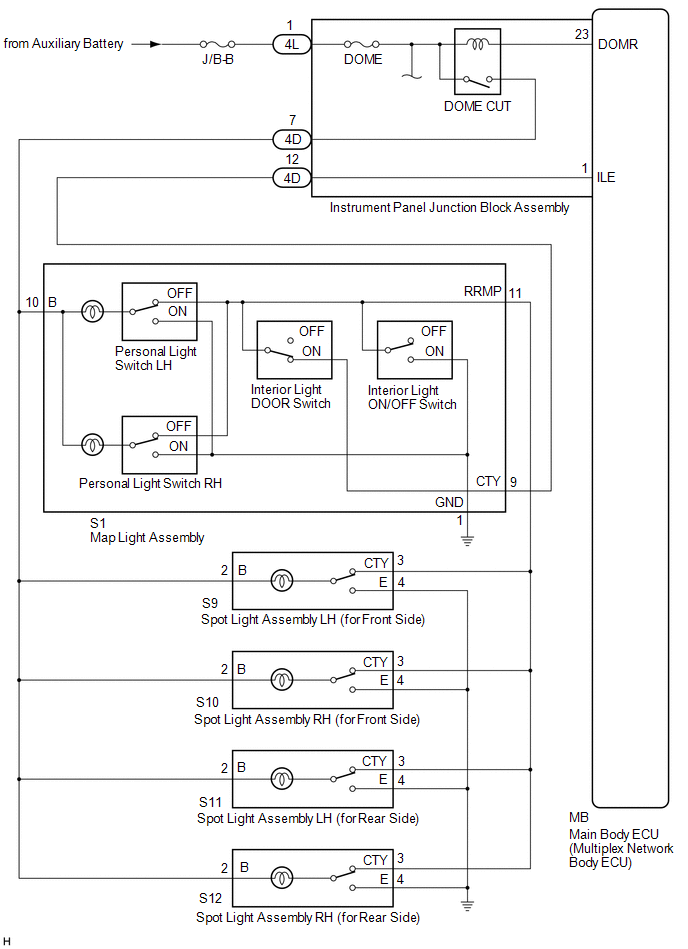

Interior Light Circuit [02/2014 - ]: Wiring Diagram

  1. GTY451295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
