Interior Light Auto Cut Circuit [02/2014 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Active Test.
5. Perform the Active Test according to the display on the Techstream.

   Body Electrical > Main Body > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Relay for Interior Light Auto Cut Function	DOME CUT relay	ON or OFF	When performing this Active Test, turn on each interior lights. ON: DOME CUT relay off (interior lights turn off) OFF: DOME CUT relay on (interior lights turn on)

   Body Electrical > Main Body > Active Test

   Tester Display
   Relay for Interior Light Auto Cut Function

   OK

   DOME CUT relay operates.

   Result

   Proceed to
   OK
   NG

Result:  1

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [02/2014 - ]

Result:  2

NG

See step  2

1. Disconnect the 4L instrument panel junction block assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   4L-1 - Body ground	Power switch off	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  1

OK

See step  3

1. Remove the instrument panel junction block assembly.

   Refer to REMOVAL [02/2014 - 11/2016] Refer to REMOVAL [11/2016 - ]

2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

   Refer to REMOVAL [02/2014 - 11/2016] Refer to REMOVAL [11/2016 - ]

3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

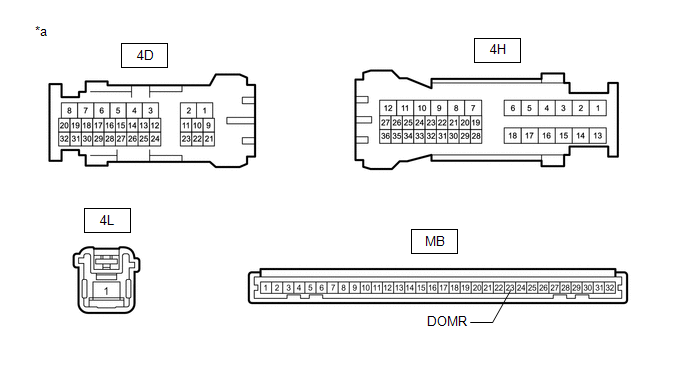

   *a

   Component without harness connected (Instrument Panel Junction Block Assembly)

   -

   -

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   4H-5 - Auxiliary battery negative terminal	Auxiliary battery positive (+) → 4L-1 Auxiliary battery negative (-) → MB-23 (DOMR)	11 to 14 V
   4D-7 - Auxiliary battery negative terminal	Auxiliary battery positive (+) → 4L-1 Auxiliary battery negative (-) → MB-23 (DOMR)	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [02/2014 - 11/2016]  Refer to  REMOVAL [11/2016 - ]

Result:  2

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [02/2014 - 11/2016]  Refer to  REMOVAL [11/2016 - ]
