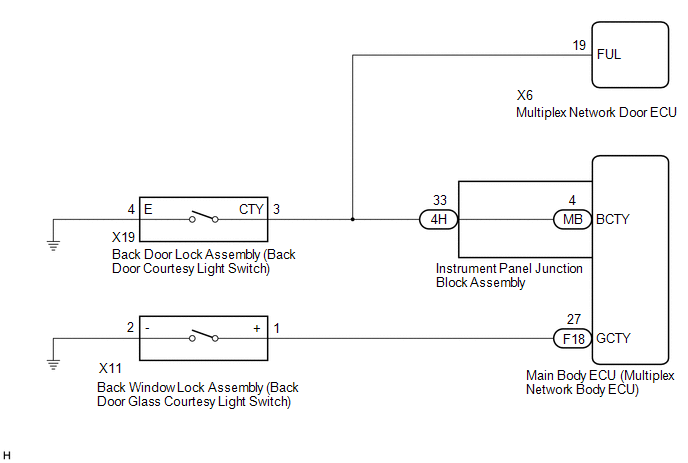

Back Door Courtesy Switch Circuit [02/2014 - 11/2016]: Wiring Diagram

  1. GTY433895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
