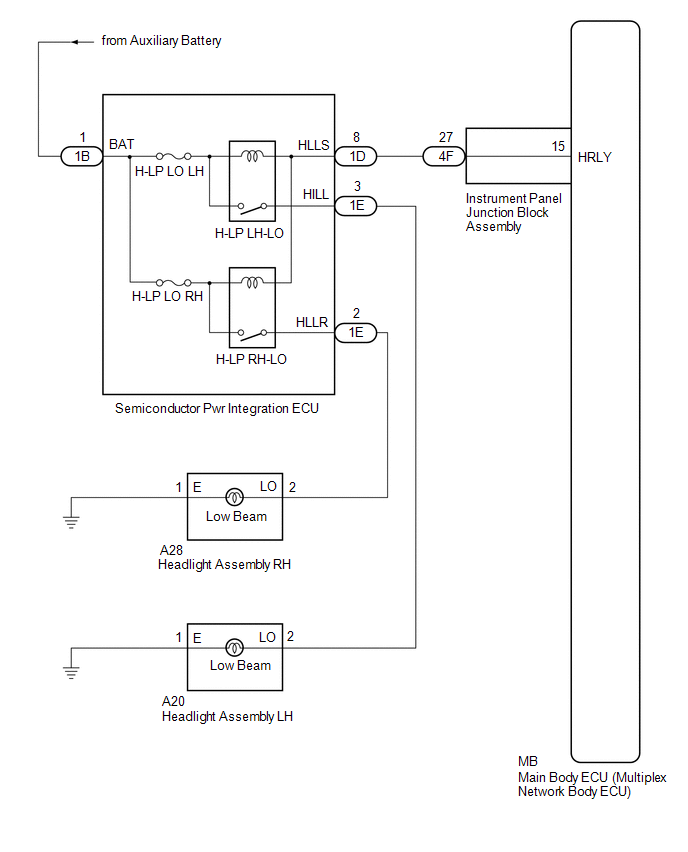

Low Beam Headlight Circuit [02/2014 - 11/2016]: Wiring Diagram

GTY438969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
