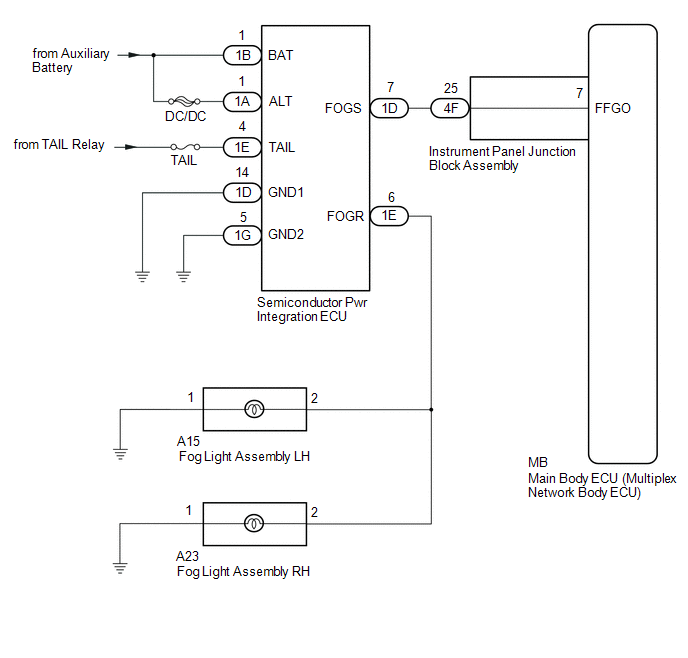

Front Fog Light Circuit [02/2014 - ]: Wiring Diagram

GTY452767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
