Daytime Running Light Relay Circuit [11/2016 - ]: Wiring Diagram

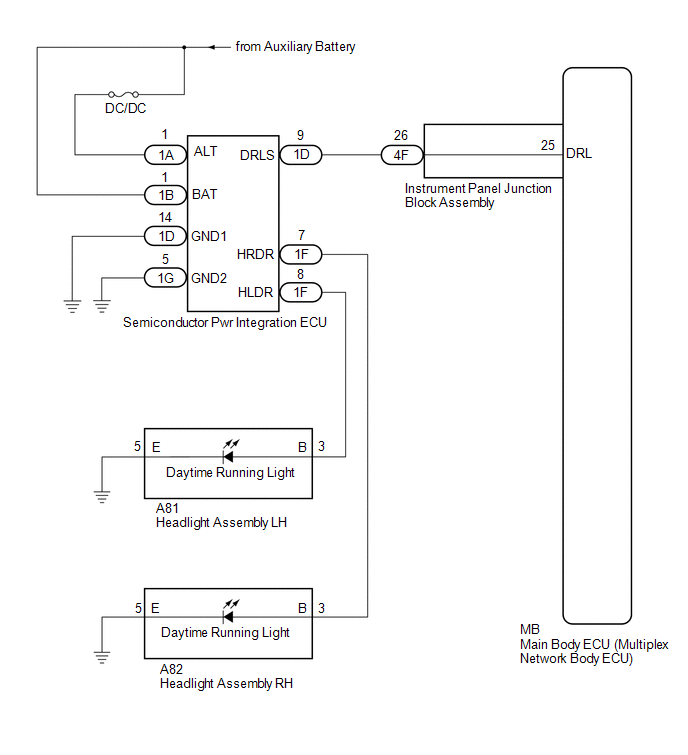

  1. for LED Type DRL
    GTY704284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

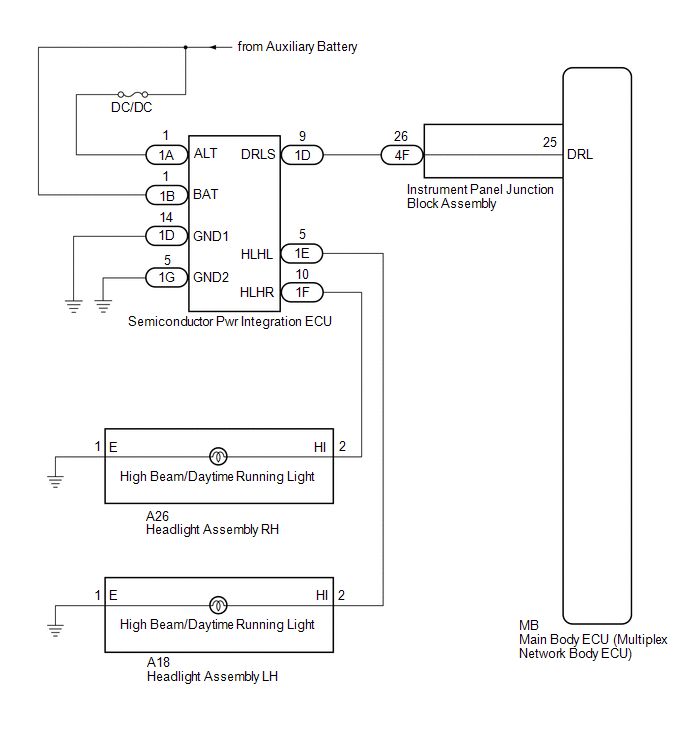

  2. for Bulb Type DRL
    GTY699991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
