Daytime Running Light Relay Circuit [02/2014 - 11/2016]: Wiring Diagram

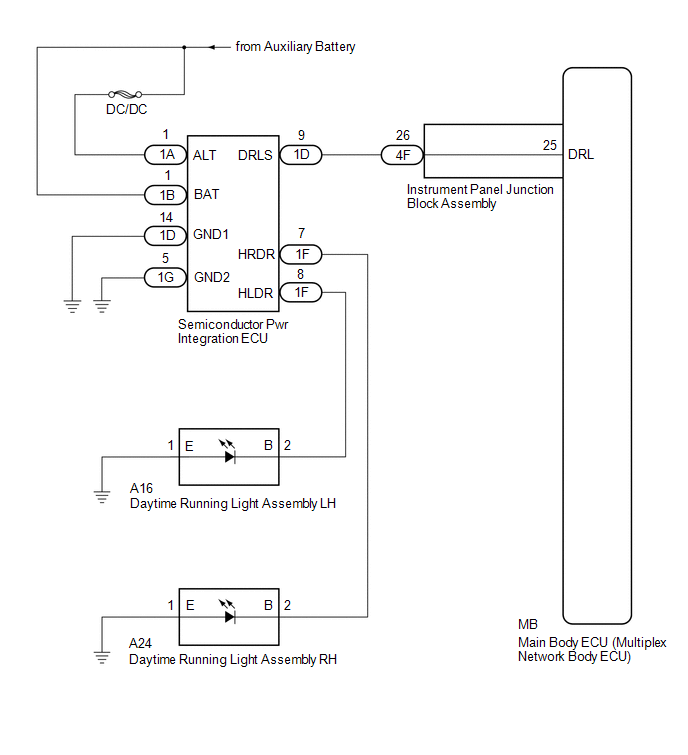

  1. for DRL LED Type
    GTY455261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

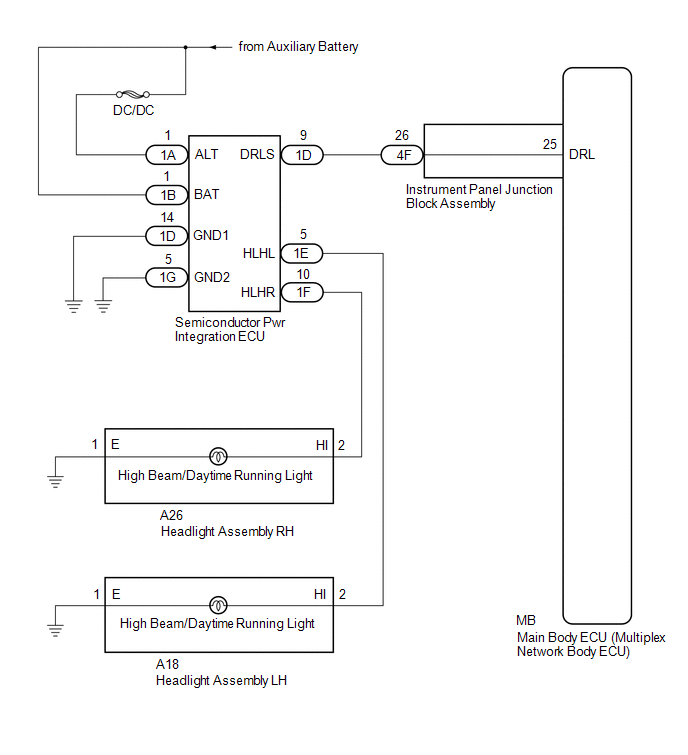

  2. for DRL Bulb Type
    GTY584764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
