Parts Location [11/2016 - ]: Illustration

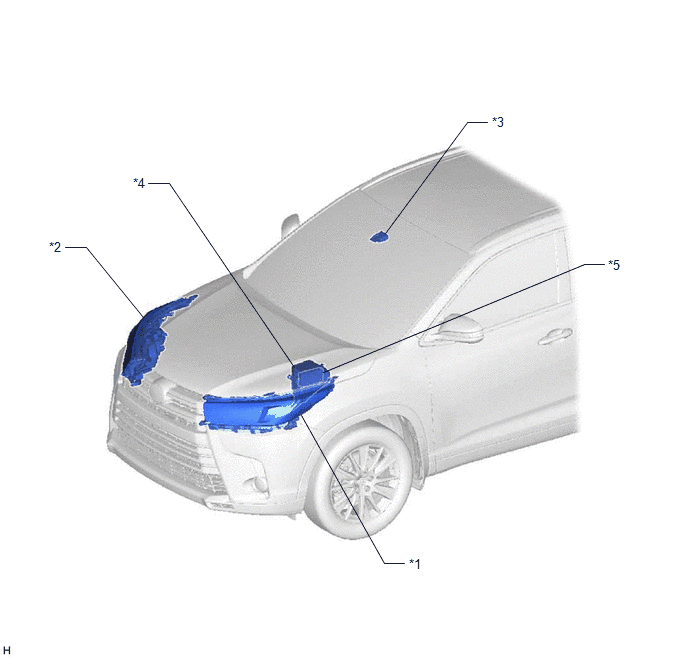

Fig 1: Automatic High Beam System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY LH	*2	HEADLIGHT ASSEMBLY RH
*3	FORWARD RECOGNITION CAMERA	*4	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
*5	SEMICONDUCTOR PWR INTEGRATION ECU	-	-

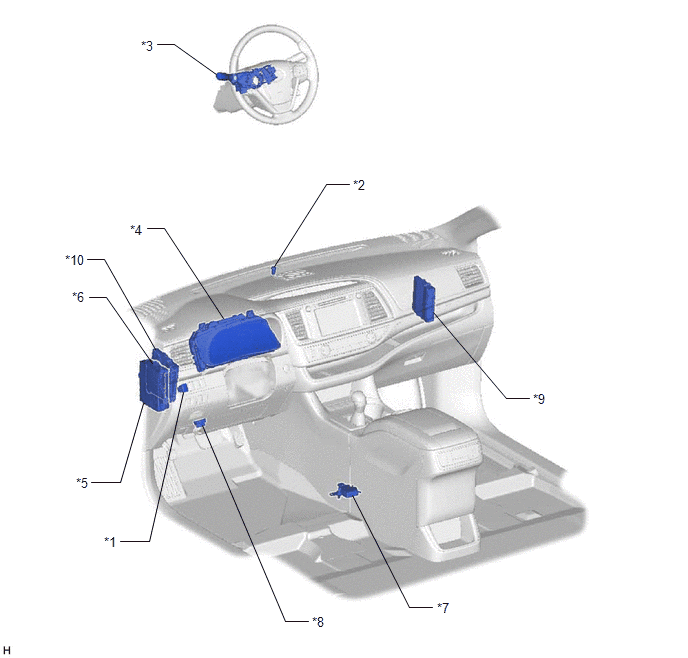

Fig 1: Automatic High Beam System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTO HIGH BEAM SWITCH	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7	YAW RATE SENSOR ASSEMBLY	*8	DLC3
*9	SKID CONTROL ECU ASSEMBLY	*10	HYBRID VEHICLE CONTROL ECU ASSEMBLY
