Parts Location [02/2014 - 11/2016]: Illustration

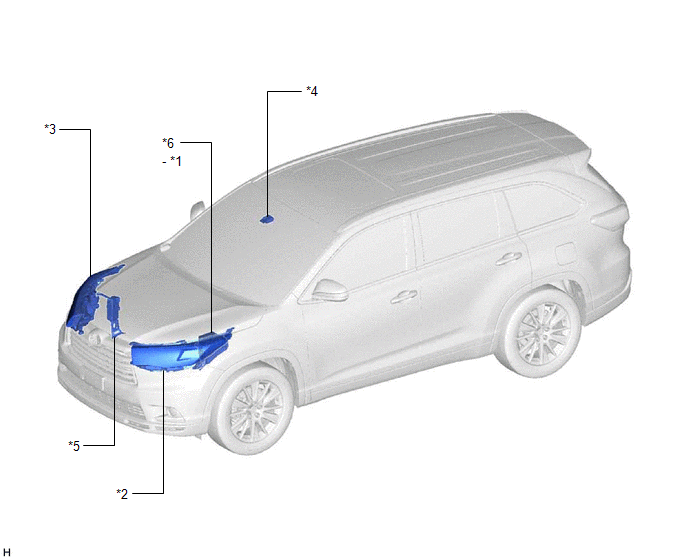

Fig 1: Automatic High Beam System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEMICONDUCTOR PWR INTEGRATION ECU	*2	HEADLIGHT ASSEMBLY LH
*3	HEADLIGHT ASSEMBLY RH	*4	LANE DEPARTURE WARNING CAMERA
*5	ECM	*6	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

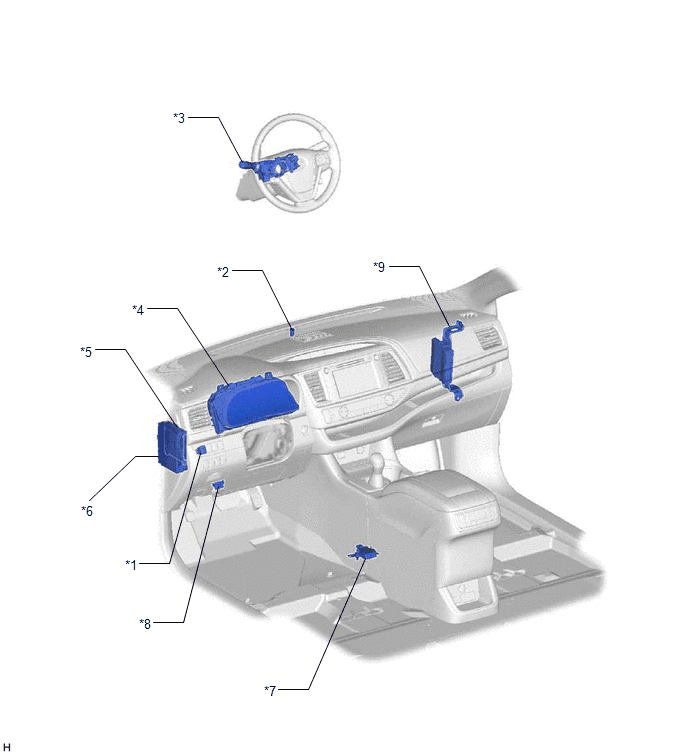

Fig 1: Automatic High Beam System Components Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTO HIGH BEAM SWITCH	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG FUSE
*7	YAW RATE SENSOR	*8	DLC3
*9	SKID CONTROL ECU ASSEMBLY	-	-
