System Diagram [02/2014 - 11/2016]

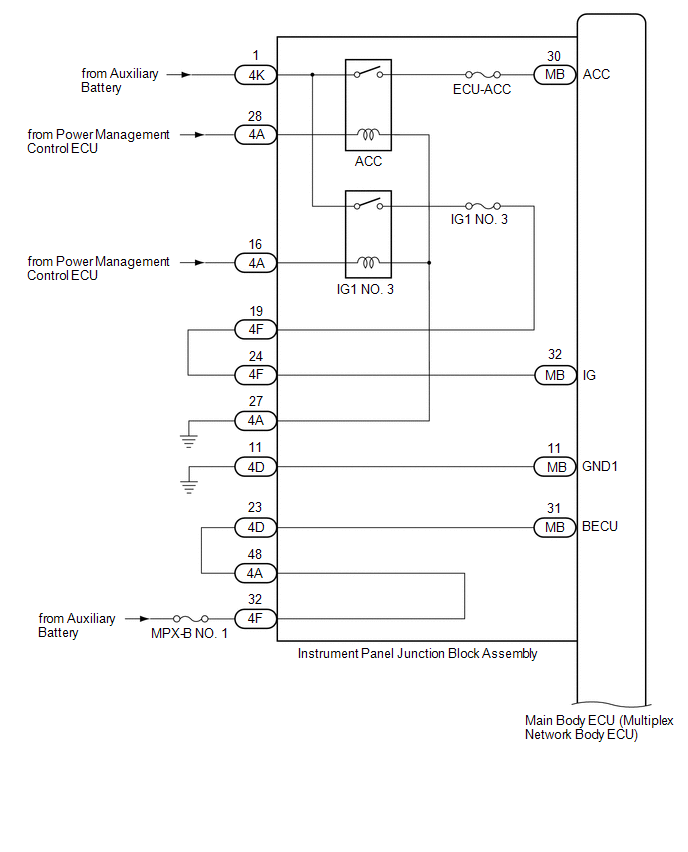

Fig 1: Lighting System Wiring Diagram (1 Of 7)

GTY439485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

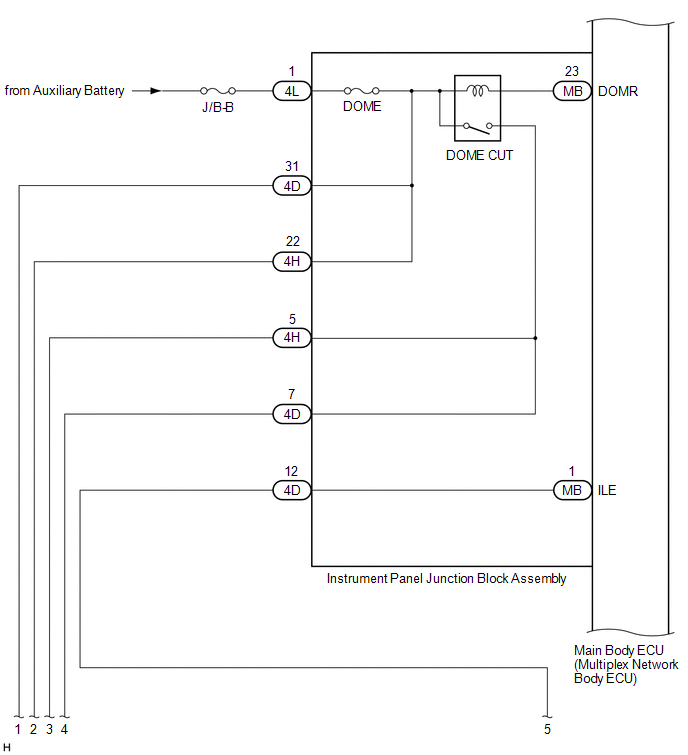

Fig 2: Lighting System Wiring Diagram (2 Of 7)

GTY433095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

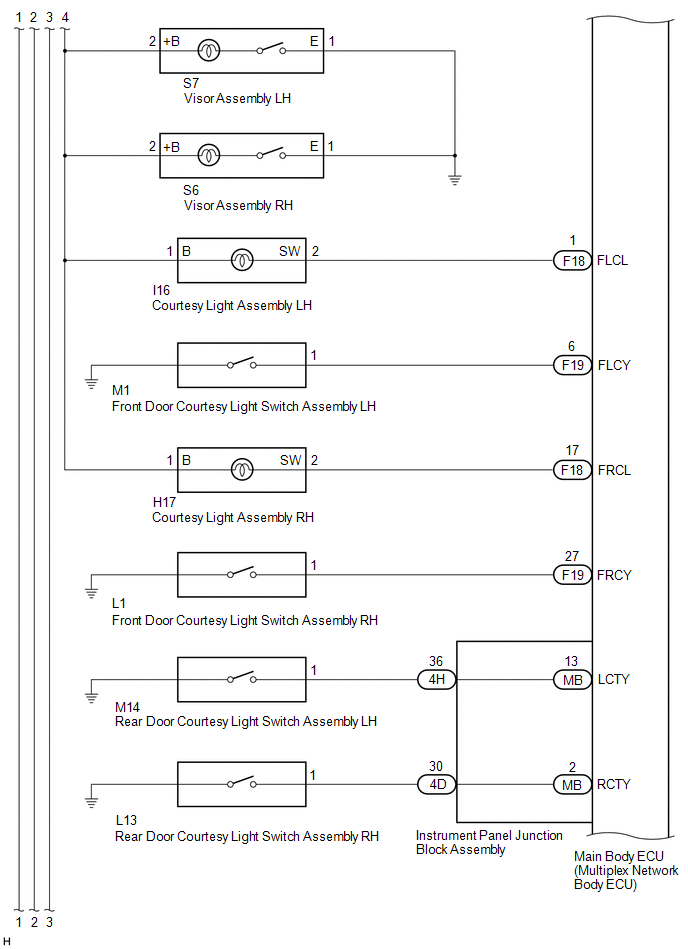

Fig 3: Lighting System Wiring Diagram (3 Of 7)

GTY428844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

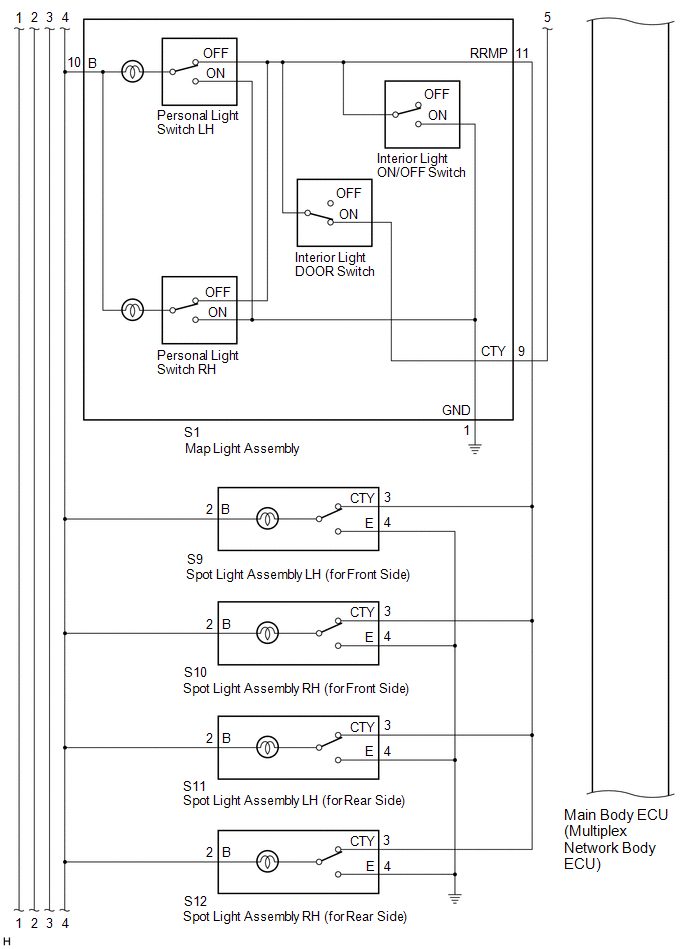

Fig 4: Lighting System Wiring Diagram (4 Of 7)

GTY425588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

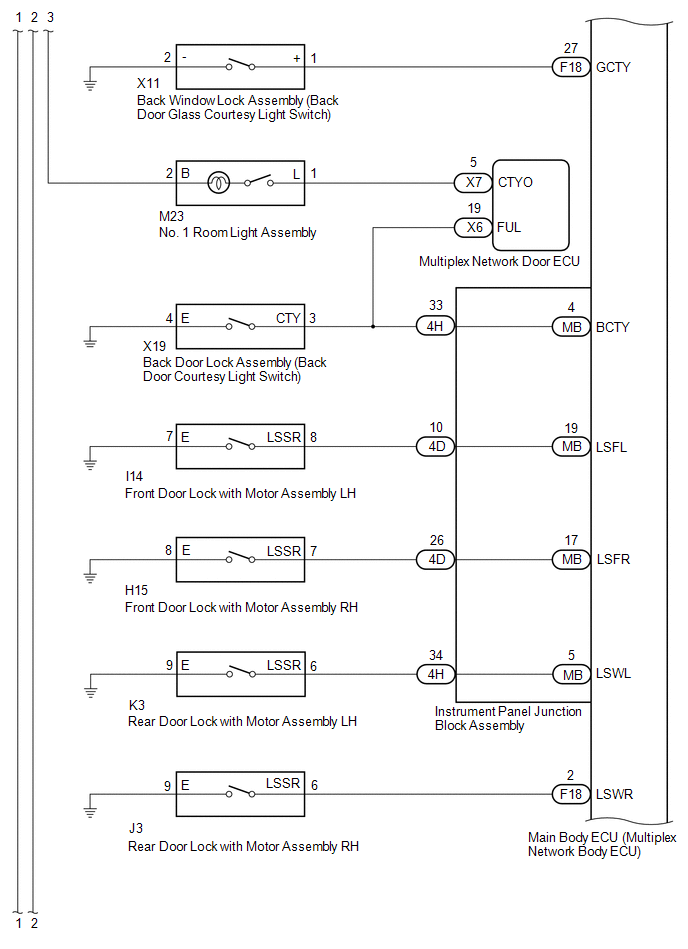

Fig 5: Lighting System Wiring Diagram (5 Of 7)

GTY427708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

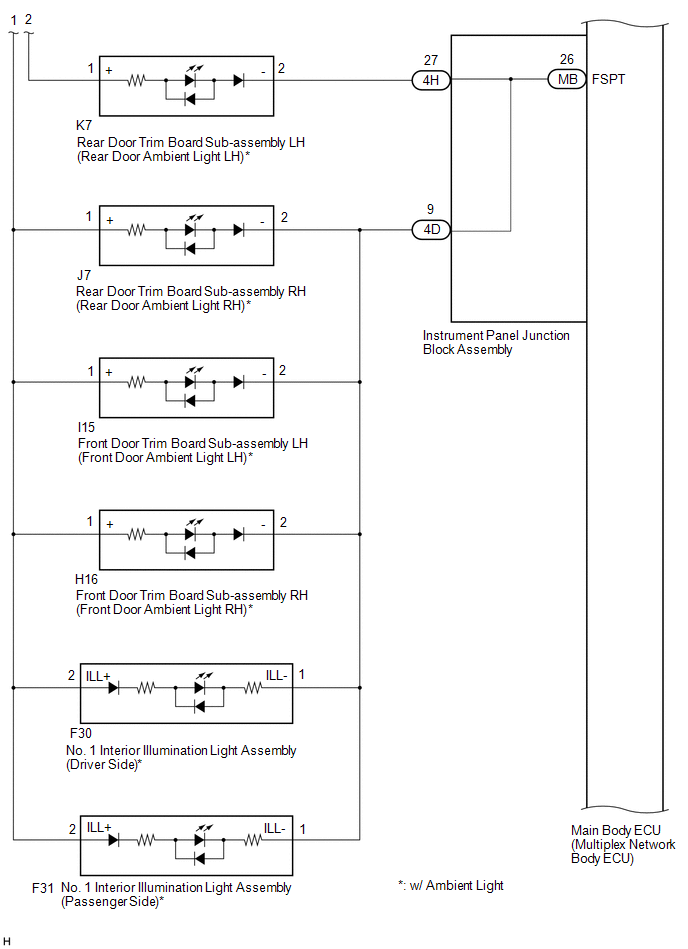

Fig 6: Lighting System Wiring Diagram (6 Of 7)

GTY716012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

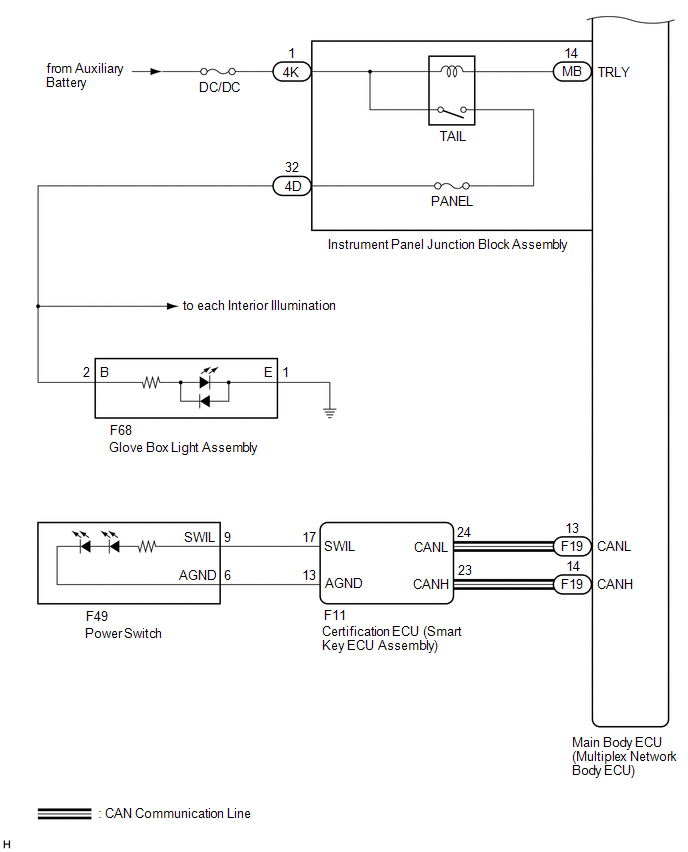

Fig 7: Lighting System Wiring Diagram (7 Of 7)

GTY424126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
